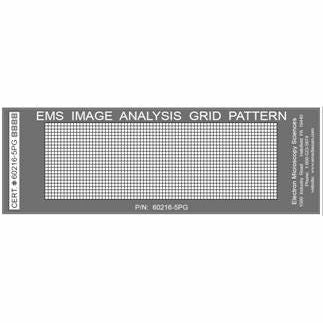

Analysis standard, Model IAM-5L, pitch 1000um

This ideal standard is for verifying or qualifying multiple image analysis parameters such as optical distortion, alignment between systems or optical paths, and cell areas for particle counting. The image area is 20mm x 50mm.

Overall size: 1” x 3” (25mm x 75mm)
Image Forming Material:  Negative image / Chrome on glass (NG)
Model No. Clear Aperture   Opaque Lines Pitch
IAM-5S 8.5 µm square 1.5 µm square 10 µm
IAM-5M 180 µm square 20 µm square 200 µm
IAM-5L 980 µm square 20 µm square 1000 µm
Code Title Pack Size Availability Price Updated: 20-08-2022
EMS60216-5LNG Analysis standard, Model IAM-5L, pitch 1000um Each 2 weeks $584.00 AUD
