AMD-SS active area balance tables

High Performance anti vibration tables for balancesBuilt-in isolation area designed for analytical balanceRemoves up to 99 percent of unwanted vertical and horizontal vibrationsFlush working area around balance for supporting hardwarePharma satin silicon 0.25Ra stainless steel meets international standards for cleanlinessOutperforms rubber and spring isolators and simple granite and steel tablesThese workstations remove unwanted vibrations which limit the performance of sensitive instruments such as balances. The table is offered in a range of sizes and incorporates a 30 x 45 cm vibration isolation platform, which sits flush with the surrounding table surface in a recess. Instruments are placed directly onto this isolation section of the workstation and isolations are removed by the built-in isolators. Tilting leveling feet on the frame ensure the table sits stably on the floor.The stainless steel ...

High Performance anti vibration tables for balances

  • Built-in isolation area designed for analytical balance
  • Removes up to 99 percent of unwanted vertical and horizontal vibrations
  • Flush working area around balance for supporting hardware
  • Pharma satin silicon 0.25Ra stainless steel meets international standards for cleanliness
  • Outperforms rubber and spring isolators and simple granite and steel tables

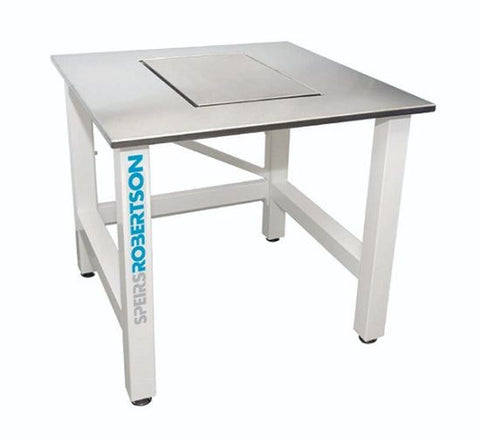

These workstations remove unwanted vibrations which limit the performance of sensitive instruments such as balances. The table is offered in a range of sizes and incorporates a 30 x 45 cm vibration isolation platform, which sits flush with the surrounding table surface in a recess. Instruments are placed directly onto this isolation section of the workstation and isolations are removed by the built-in isolators. Tilting leveling feet on the frame ensure the table sits stably on the floor.

The stainless steel versions feature a satin silicon finish with a very low Ra of 0.25 making them ideal for cleanrooms and as well as being resistant to almost all forms of biological and chemical attack. The frame is produced using tubular ERW steel which combines high rigidity with a closed profile that allows easy and thorough cleaning. Tilting leveling feet ensure it sits perfectly in contact with the floor.

AMD-SS stainless versions feature an AMS-30x45 platform with four 7Hz sorbothane isolators which give an excellent 95 percent isolation at 50Hz. A unique sound deadening core soaks up surface borne vibrations and ensures our tables outperform simple granite and steel tables by up to 20dB. 240 silicon satin stainless ensures our tables meet all the requirements for use in stringent environments such as cleanrooms and biohazard areas.

Specifications

Model AMD-SS
Isolation Platform AMB-30x45
Table Working Surface Satin silicon finished stainless steel
Isolator Type Elastomer
Isolation Performance
50Hz
100Hz

95%
98%
Natural Frequency 2Hz
Working Height 75 cm (90 cm optional)
Table Top Thickness 2 cm
Height Range (Adjustable) ± 15 cm
Isolation Platform Size 30 x 45cm
Load Capacity 100kg
Frame Construction ERW box section steel
Frame Finish White powder epoxy
Working Temperature -20°C to 160°C
Bacterial Resistance No growth
Fungal Resistance No growth
Heat Aging Stable


Code Title Table Size Surface Pack Size Availability Price Updated: 02-03-2024
EMS6690 AMD-SS active area balance tables 75 x 75cm Stainless steel Each 2 weeks Quote only Quote
Quote
EMS6691 AMD-SS active area balance tables 90 x 75cm Stainless steel Each 2 weeks Quote only Quote
Quote
EMS6692 AMD-SS active area balance tables 120 x 75cm Stainless steel Each 2 weeks Quote only Quote
Quote
EMS6693 AMD-SS active area balance tables 75 x 75cm Trespa Each 2 weeks Quote only Quote
Quote
