AMC-7 anti-vibration platform, 230V

EMS-AMC-7 Platform for 25 KgContoured shape ideal for use with microscopesRolling diaphragm isolator removes up to 99 percent of vibrationsElectroless nickel version meets Class 1Ideal for laminar flow cabinets, biohazard areas, cleanroomsAMC-7 with sorbothane isolators gives economic isolationThese platforms remove unwanted vibrations which limit the performance of microscopes. Their T-shaped profile allows users to place their arms on either side of the platform, while the rear section is wide enough to accommodate most makes of microscope.Air platforms are made from aluminum parts and are fully non-magnetic. They meet the most stringent cleanliness requirements, such as Class 1 and are resistant to most forms of biological and chemical attack. Their simple shape makes them very easy to clean. We offer a choice of white epoxy powder or electroless nickel finishes.Air platform top plates res...

EMS-AMC-7 Platform for 25 Kg

Contoured shape ideal for use with microscopes

  • Rolling diaphragm isolator removes up to 99 percent of vibrations
  • Electroless nickel version meets Class 1
  • Ideal for laminar flow cabinets, biohazard areas, cleanrooms
  • AMC-7 with sorbothane isolators gives economic isolation

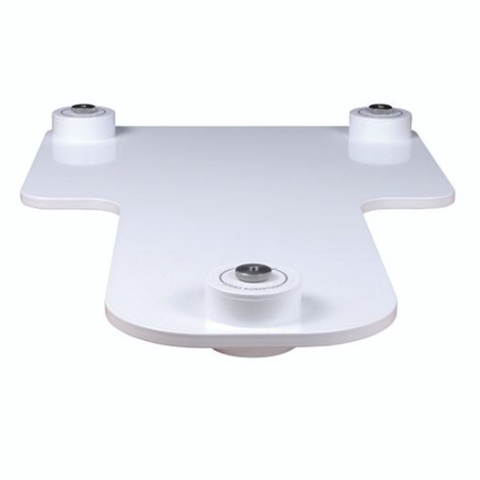

These platforms remove unwanted vibrations which limit the performance of microscopes. Their T-shaped profile allows users to place their arms on either side of the platform, while the rear section is wide enough to accommodate most makes of microscope.

Air platforms are made from aluminum parts and are fully non-magnetic. They meet the most stringent cleanliness requirements, such as Class 1 and are resistant to most forms of biological and chemical attack. Their simple shape makes them very easy to clean. We offer a choice of white epoxy powder or electroless nickel finishes.

Air platform top plates rest on three pneumatic damped rolling diaphragm isolators. Typical building vibrations, which cause the most problems, are the cyclical ones between 7 and 30Hz. These isolators have a natural frequency of around 2Hz and start to effectively isolate vibrations from 7Hz upwards, greatly outperforming simple air cushion and rubber isolators which have much higher natural frequencies.

The isolators are inflated using a conventional bicycle pump. When pressurized the isolators float the platform free from the bench it is placed on and so isolate the microscope placed on top from vibrations present on the worksurface via a cushion of air enclosed by the rolling diaphragm.

Has three elastomeric isolators which give good isolation above 20Hz and features a white epoxy finish over a steel base.

Specifications

Model AMC-7
Dimensions LxWxH (mm) 565 x 380 x 45
Load Capacity 25 kg; 75 kg with Option L
Level Adjustment (mm) n/a
Isolators 3 off elastomeric
Isolation Performance
50Hz
100Hz

95%
98%
Natural Frequency 7Hz vertical
2Hz horizontal
Surface Finish White Epoxy
Construction Steel
Bacterial Resistance No growth
Fungal Resistance No growth
Heat Aging Stable
Working Temperature -20?C to 160?C
Weight 12 kg

Option for up to15kg platform available.

Code Title Type Pack Size Availability Price Updated: 23-04-2024
EMS6719 AMC-7 anti-vibration platform, 230V Platform, 25kg Each See above $1,117.00 AUD
EMS6732 AMC-7 anti-vibration platform, 230V Platform, 15kg Each See above $717.00 AUD
