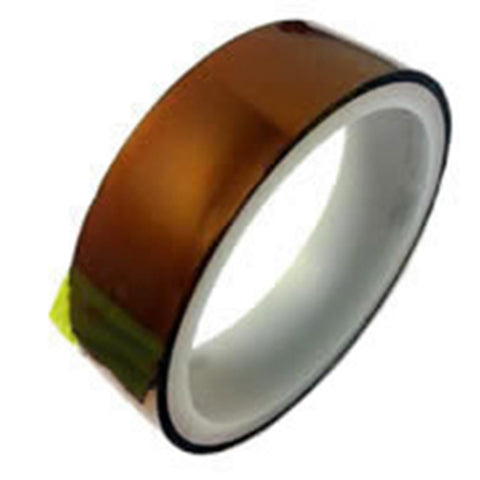

Adhesive kapton polyimide tape, standard, no liner (EMS)

This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film.  Kapton Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions. SpecificationsTemperature Range-269 to 400°C (-452 to 752°F)AdhesiveSiliconeFlammability RatioV-0Roll Length32.9 m (36 yds)ColourAmberKapton Film Thickness1 milUltimate Tensile Strength (Mpa)231 (73°F); 134 (392°F)...

This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film.  Kapton Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions.

Specifications

Temperature Range -269 to 400°C (-452 to 752°F)
Adhesive Silicone
Flammability Ratio V-0
Roll Length 32.9 m (36 yds)
Colour Amber
Kapton Film Thickness 1 mil
Ultimate Tensile Strength (Mpa) 231 (73°F); 134 (392°F)
Ultimate Elongation (%) 72 (73°F); 83 (392°F)
Density, g/cc 1.42
Tensile Modulus (GPa) 2.5 (73°F); 2.0 (392°F)
Melting Point none
Plastic Core Diameter 77mm (3")

Kapton is a trademark of DuPont?

Code Title Width Pack size Availability Price Updated: 23-04-2024
EMS77708-01 Adhesive kapton polyimide tape, standard, no liner (EMS) 6.35mm (0.25in) Roll/32.9m See above $61.00 AUD
EMS77708-02 Adhesive kapton polyimide tape, standard, no liner (EMS) 12.7mm (0.5in) Roll/32.9m See above $99.00 AUD
EMS77708-03 Adhesive kapton polyimide tape, standard, no liner (EMS) 19.05mm (0.75in) Roll/32.9m See above $133.00 AUD
EMS77708-04 Adhesive kapton polyimide tape, standard, no liner (EMS) 25.4mm (1in) Roll/32.9m See above $174.00 AUD
EMS77708-05 Adhesive kapton polyimide tape, standard, no liner (EMS) 50.8mm (2in) Roll/32.9m See above $324.00 AUD
