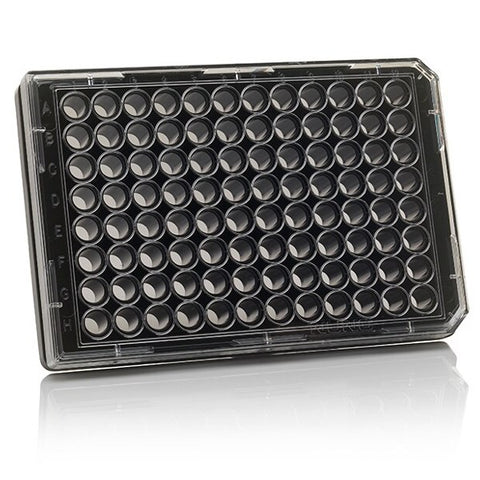

NUNC coverglass bottom plates for 96-well pates

The NUNC Coverglass Optical Bottom 96-well plates have the same quality design as existing NUNC well products, plus an optically clear polystyrene plate bottom. This clear base permits microscopic viewing and reading of wells. The plate's upper structure is offered in black (for fluorometric detection) Polystyrene, coverglass is sterile. External dimensions 128 x 86mm.FeaturesWhite or black upper structure with #1.5 borosilicate coverglassMinimum light scatter and low autofluorescenceOptical clarity for viewing well contentsFlat bottom well geometry for plate reader accessFootprint compatible with standard equipment and automated systemsCC2 surface modification closely mimics Poly-D-Lysine and it is superior for attachment and growth of fastidious cellsNon-treated plates are optimied for fluorescenceSterile for cell cultureWorking range: 50-200µL wells

The NUNC Coverglass Optical Bottom 96-well plates have the same quality design as existing NUNC well products, plus an optically clear polystyrene plate bottom. This clear base permits microscopic viewing and reading of wells.

The plate's upper structure is offered in black (for fluorometric detection) Polystyrene, coverglass is sterile. External dimensions 128 x 86mm.

Features

  • White or black upper structure with #1.5 borosilicate coverglass
  • Minimum light scatter and low autofluorescence
  • Optical clarity for viewing well contents
  • Flat bottom well geometry for plate reader access
  • Footprint compatible with standard equipment and automated systems
  • CC2 surface modification closely mimics Poly-D-Lysine and it is superior for attachment and growth of fastidious cells
  • Non-treated plates are optimied for fluorescence
  • Sterile for cell culture
  • Working range: 50-200µL wells
Plate Height 14.9mm
H2 Height from inside well bottom to resting plane 2.5mm
H3 Inside depth of well 12.2mm
H4 Coverglass thickness 0.19mm
H5 Height of flange 6.2mm
Well diameter 6.5mm
Total Volume (per plate) 400uL


Product Surface Colour Sterile Lid
EMS64815-05 Cell Culture Black Yes Yes
EMS64815-10 Cell Culture White Yes Yes
EMS64815-15 Non-treated Black No No
EMS64815-20 CC2 Black Yes Yes
Code Title Surface Colour Pack Size Availability Price Updated: 09-05-2024
EMS64815-05 NUNC coverglass bottom plates for 96-well pates Cell Culture Black Pack/30 See above Quote only Quote
Quote
EMS64815-10 NUNC coverglass bottom plates for 96-well pates Cell Culture White Pack/30 See above Quote only Quote
Quote
EMS64815-15 NUNC coverglass bottom plates for 96-well pates Non-treated Black Pack/30 See above Quote only Quote
Quote
EMS64815-20 NUNC coverglass bottom plates for 96-well pates CC2 Black Pack/30 See above Quote only Quote
Quote
