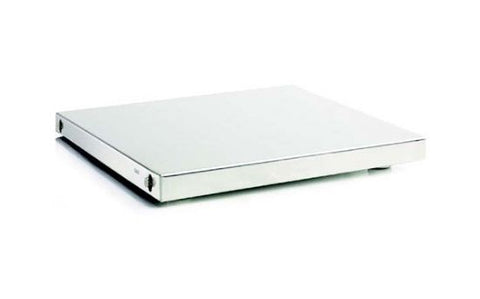

AMF active air self-levelling platforms
  • Collections

AMF active air self-levelling platforms

These platforms are self-leveling and ideal for use when loads on the platform are likely to change. They can support up to 100kg and are available in a range of standard sizes from 60x60cm up to 150x90cm. Their low 6cm working height and low weight makes them ideal for use on desks and benches.High Performance anti-vibration platforms for microscopesUnique air damped rolling diaphragm sub 2Hz frequency isolator removes up to 99 percent of vibrationsStainless steel version meets stringent cleanliness requirements and is resistant to almost all forms of chemical attackSound deadened construction eliminates unwanted surface vibrationsSpecifications:

These platforms are self-leveling and ideal for use when loads on the platform are likely to change. They can support up to 100kg and are available in a range of standard sizes from 60x60cm up to 150x90cm. Their low 6cm working height and low weight makes them ideal for use on desks and benches.

High Performance anti-vibration platforms for microscopes

  • Unique air damped rolling diaphragm sub 2Hz frequency isolator removes up to 99 percent of vibrations
  • Stainless steel version meets stringent cleanliness requirements and is resistant to almost all forms of chemical attack
  • Sound deadened construction eliminates unwanted surface vibrations

Specifications:

Platform Working Height 60mm
Load Capacity 100kgs
Level Adjustment ±15mm
Surfaces white epoxy or stainless steel
Isolators 4off damped rolling diaphragm, active air self-levelling
Isolation Performance
 97 percent @ 50Hz
99 percent @ 100Hz
Natural Frequency 2Hz
Air Supply 5 bar (max 7) via 6mm push-fitting
Working Temperature -20°C to 160°C
Updated: 15-01-2025
Code Title Size Surface Pack Size Availability Price Updated: 15-01-2025
EMS6200 AMF active air self-levelling platforms 60 x 60cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6200-SS AMF active air self-levelling platforms 60 x 60cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6250 AMF active air self-levelling platforms 60 x 90cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6250-SS AMF active air self-levelling platforms 60 x 90cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6260 AMF active air self-levelling platforms 60 x 120cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6260-SS AMF active air self-levelling platforms 60 x 120cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6261 AMF active air self-levelling platforms 75 x 75cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6261-SS AMF active air self-levelling platforms 75 x 75cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6270 AMF active air self-levelling platforms 75 x 90cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6270-SS AMF active air self-levelling platforms 75 x 90cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6280 AMF active air self-levelling platforms 75 x 120cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6280-SS AMF active air self-levelling platforms 75 x 120cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6290 AMF active air self-levelling platforms 75 x 150cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6290-SS AMF active air self-levelling platforms 75 x 150cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6300 AMF active air self-levelling platforms 90 x 90cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6300-SS AMF active air self-levelling platforms 90 x 90cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6310 AMF active air self-levelling platforms 90 x 120cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6310-SS AMF active air self-levelling platforms 90 x 120cm Stainless steel Each 0 in stock (?) P.O.R. Quote
EMS6320 AMF active air self-levelling platforms 90 x 150cm White Epoxy Each 0 in stock (?) P.O.R. Quote
EMS6320-SS AMF active air self-levelling platforms 90 x 150cm Stainless steel Each 0 in stock (?) P.O.R. Quote
