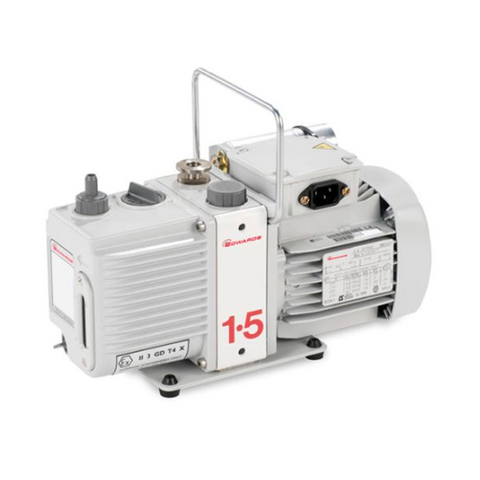

Edwards E2M1.5 vacuum pumps

This miniature two stage pump features an alternative inlet connection position at the side of the pump so that overall installation height can be reduced to a minimum when required.

190L/min displacement
Ultimate vacuum (without gas ballast): 1.1x10^-3 torr.
Max. inlet pressure for water vapour: 11.3 torr
Max. water vapour pumping rate: 0.035lb/hr
Oil capacity Max/Min: 0.28L/0.2L

Ultra Grade 19 oil is recommended for use with the E2M1.

Weight: 22kg

Oil mist filters and odour filters available.

Please choose carefully. Returns of this item are subject to approval.

Updated: 05-02-2025

Code	Title	Voltage	Pack Size	Availability	Price	Updated: 05-02-2025
EMS91004	Edwards E2M1.5 vacuum pumps	110V	Each	0 in stock (?)	P.O.R.	Quote
EMS91004-E	Edwards E2M1.5 vacuum pumps	220V	Each	0 in stock (?)	P.O.R.	Quote

* Ordering Schedule

This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 4 weeks.

This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
