Lattice plane specimen calibration standard

Since crystal lattice plane spacings are accurately known from x-ray measurements, they provide a good test of microscope stability and a calibration of magnification in the upper range of magnification of the instrument.

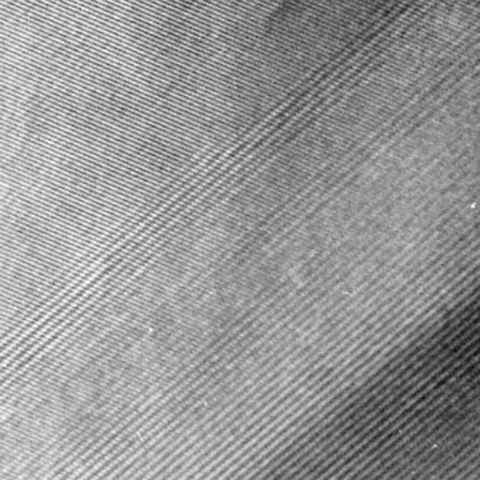

Plane Spacing 0.9nm and 0.45nm - Asbestos Crocidolite.

The 0.9nm spacing (020) will be found along the axis of the crocidolite fibres. The 0.45nm spacing appears at an angle of about 60° in suitable crystal orientations. Because of the hazards of asbestos, this sample is sandwiched between carbon and formvar films, than mounted onto a 3.05mm grid.

Technical Data

Please choose carefully. Returns of this item are subject to approval.

Updated: 25-08-2025

Code	Style	Pack Size	Availability	Price
EMS80035	Asbestos crocidolite crystal	Each	0 in stock (?)	$114.00 AUD
EMS80037	Graphitized carbon black	Each	0 in stock (?)	$121.00 AUD
EMS80038	Oriented single crystal gold	Each	0 in stock (?)	$452.00 AUD

* Ordering Schedule

This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 4 weeks.

This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
