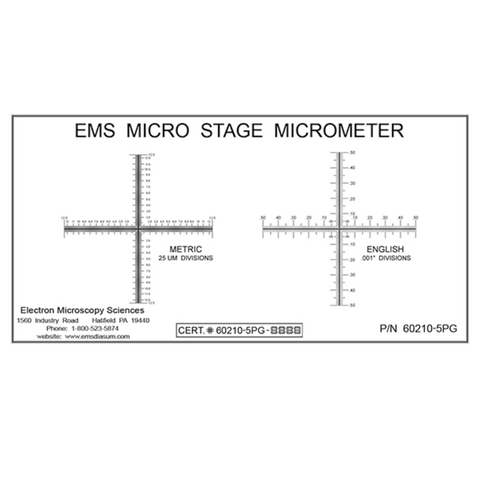

EMS stage micrometers, SM-5

The SM-5 is an ideal slide for measuring subjects on the X & Y axis at multiple levels of power in either English or Metric scales. A truly versatile slide, it is imaged precisely for the sharpest quality of the line edge and offered with NIST traceability to enhance the precision and ease of your measurements.Available: Chrome on glass (G) as standard, chrome on opal glass (O) or chrome on quartz (Q) by request only as a custom.P: positive image (mostly clear or white); N: negative image (mostly opaque or black).

The SM-5 is an ideal slide for measuring subjects on the X & Y axis at multiple levels of power in either English or Metric scales.

A truly versatile slide, it is imaged precisely for the sharpest quality of the line edge and offered with NIST traceability to enhance the precision and ease of your measurements.

Available: Chrome on glass (G) as standard, chrome on opal glass (O) or chrome on quartz (Q) by request only as a custom.

P: positive image (mostly clear or white); N: negative image (mostly opaque or black).

Technical Data

Specifications:

Glass Size	38mm x 75mm
Scale Length	1" (English) X & Y axis 25mm (Metric) X & Y axis
Divisions	English = 0.001"; Metric = 25µm (0.025mm) With numerical labelling every 1mm and 0.1"

Manufactured in the USA
