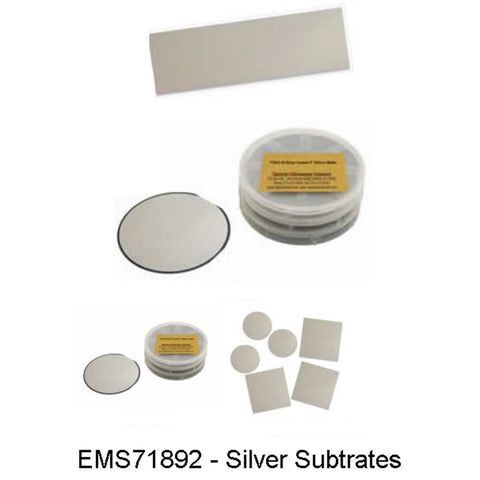

Silver coated substrates

EMS offers a variety of economically priced silver coated substrates. All coatings are deposited under vacuum using electron beam evaporation. These high quality substrates are coated with 500 Å (50nm) of silver, with a thin titanium adhesion layer (2-7nm) between the glass and silver coating. This adhesion layer can also be replaced with chromium upon request. All substrates are pre-cleaned using an ion source for quality assurance. Glass slides are packed in a dedicated cleanroom environment and shipped in slide mailers. All coverslips are packed in a dedicated cleanroom environment and shipped in a X0 Gel-Pak box.ApplicationsOpticsNanotechnologyReflectometryAFM applicationsSpecifications

EMS offers a variety of economically priced silver coated substrates. All coatings are deposited under vacuum using electron beam evaporation. These high quality substrates are coated with 500 Å (50nm) of silver, with a thin titanium adhesion layer (2-7nm) between the glass and silver coating. This adhesion layer can also be replaced with chromium upon request.

All substrates are pre-cleaned using an ion source for quality assurance. Glass slides are packed in a dedicated cleanroom environment and shipped in slide mailers. All coverslips are packed in a dedicated cleanroom environment and shipped in a X0 Gel-Pak box.

Applications

  • Optics
  • Nanotechnology
  • Reflectometry
  • AFM applications

Specifications

  Microscope Slides Silicon Wafers Coverslips
Type: Soda lime glass P/Boron Borosilicate glass
Density: 2.48 g/cm3 ------- 2.51 g/cm3
Refractive Index (λ=546.1 nm): 1.517 ------- 1.525
Coating Silver, Ag Silver, Ag Silver, Ag
Coating Purity: 99.99% 99.99% 99.99%
Deposition Technique: Electron Beam Electron Beam Electron Beam
Deposition Rate: 1-2 Å/sec 1-2 Å/sec 1-2 Å/sec
Vapor Pressure: 10-6 Torr 10-6 Torr 10-6 Torr
Orientation: ------- <100> -------
Resistivity: ------- 1-50 ohm-cm -------
Front Surface: ------- Polished -------
Back Surface: ------- Etched -------
Updated: 06-12-2024
Code Title Style Size Pack Size Availability Price Updated: 06-12-2024
EMS71892-30 Silver coated substrates Microscope slide 25 x 75 x 1mm Each 0 in stock (?) $145.00 AUD
Close
EMS71892-35 Silver coated substrates Silicon wafer, 4in 100 mm dia., 0.525 mm th. Each 0 in stock (?) $409.00 AUD
EMS71892-40 Silver coated substrates Silicon wafer, 2in 50 mm dia., 0.279 mm th. Each 0 in stock (?) $223.00 AUD
EMS71892-45 Silver coated substrates Square coverslip 22 x 22 x 0.2mm Pack/2 0 in stock (?) $168.00 AUD
EMS71892-50 Silver coated substrates Round coverslip 16mm dia, 0.15mm Pack/2 0 in stock (?) $112.00 AUD
