Chessy test specimen

A precise SEM test specimen for most all calibration applications.

The Structure

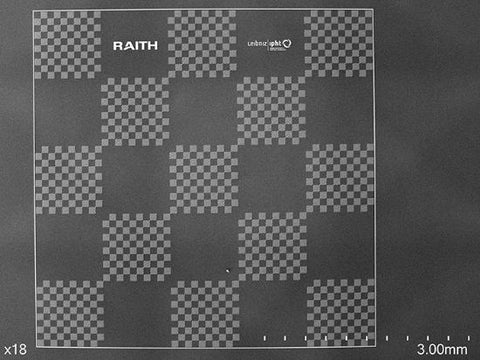

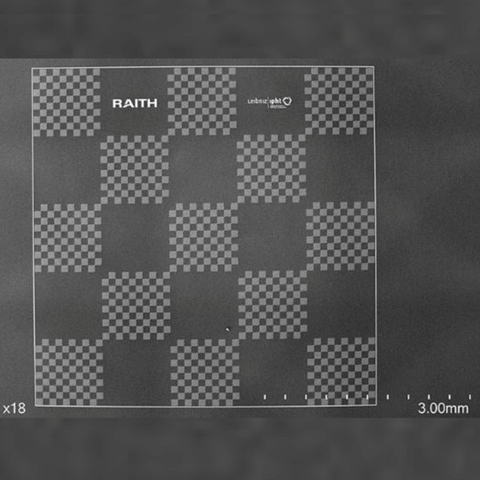

There are more than 1.6 million gold squares of 1µ size on silicon forming a 4-fold checkerboard pattern in an area of 5mm square. The smallest metric checkerboard has a size of 10 x 10µ. Such checkerboards form larger metric checkerboards of 100 x 100µ - These again form checkerboards of 1 mm square. Finally, such 1mm squares are arranged in the same manner covering a field of 5 mm square.

The edges of the empty corners in 0.1 and 1 mm checkerboards are additionally marked. The surrounding frame is 10µ wide and has an outer side length of 5.04 mm. The pattern was directly written by e-beam lithography using the new ZBA 31/32 from JENOPTIK.

The thickness layer of Si is 525µm ±25µm.
The thickness layer of Au is 100nm.

Applications

Imaging

• Calibration of SEM magnification in all ranges between 20x and 50,000x.
• Check of equal scaling in X and Y
• Check of orthogonality and distortion
• Resolution test at high magnification on the edges of the gold squares

Motorised Stages
(especially for use with ESCOSY)

• Measurement of reproducibility using stored position
• Calibration of readings in X and Y
• Calibration of stage orthogonality
• Measurement of absolute positioning accuracy

Experimental Electron Lithography
(use with attachment ELPHY or PROXY-WRITER)

• Generation of metric writing fields between 10µ and 5mm square via mark recognition and alignment
• Measurement of SEM distortion at any magnification via mark recognition on different places
• Check of defocusing in outer areas
