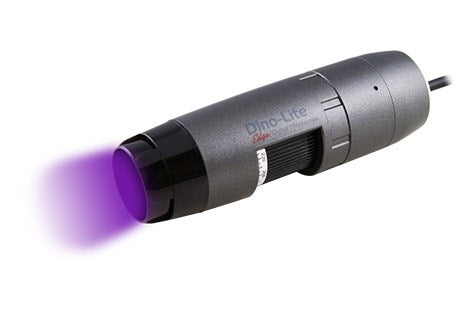

Dino-Lite Edge cyan fluorescence digital microscope

Applicable for research with cyan and a wide range of fluorescence, the Dino-Lite EDGE AM4115T-CFVW digital microscope is one of the world smallest fluorescence microscopes with near UV excitation LEDs integrated. With its small form factor, it impacts the microscopy world by change how the fluorescence microscope can be used for research by no longer needing to be bulky, heavy, expensive, or delicate.This handheld digital microscope is great for research with cyan and a wide range of fluorescence. It comes with a high quality 1.3 megapixel sensor. With this model, you can view objects at different magnifications, depending on distance, with the maximum magnification at over 200x under UV-fluorescent light.This model also comes with built-in near UV-fluorescent LEDs that cleverly integrate special 400nm LED excitation lights and a high-pass type emission filter that cuts off at 430nm into a Dino-Lite digital microscope.Specifications:

Applicable for research with cyan and a wide range of fluorescence, the Dino-Lite EDGE AM4115T-CFVW digital microscope is one of the world smallest fluorescence microscopes with near UV excitation LEDs integrated. With its small form factor, it impacts the microscopy world by change how the fluorescence microscope can be used for research by no longer needing to be bulky, heavy, expensive, or delicate.

This handheld digital microscope is great for research with cyan and a wide range of fluorescence. It comes with a high quality 1.3 megapixel sensor. With this model, you can view objects at different magnifications, depending on distance, with the maximum magnification at over 200x under UV-fluorescent light.

This model also comes with built-in near UV-fluorescent LEDs that cleverly integrate special 400nm LED excitation lights and a high-pass type emission filter that cuts off at 430nm into a Dino-Lite digital microscope.

Specifications:

Model AM4115T-CFVW Dino-Lite Edge
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 20x~220x
Sensor Color CMOS
Frame Rate Up to 30fps
Save Formats Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG

Movie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Microtouch Touch sensitive trigger on the microscope for taking pictures
Lighting Using 7 violet LEDs for excitation lighting and has a 430nm emission filter/1 white LED switched by software
Measurement Function Yes
Calibration Function Yes
Operating System Supported Windows XP/7/8/10/11
macOS 10.14 or later
Unit Weight 100g
Unit Dimension 10.5cm (H) x 3.2cm (D)
Package Dimensions 16cm (L) x 16cm (W) x 6cm (H)

Information about working distance and field of view:

M WD FOV (x) FOV (y) DOF
20 60.2 19.5 15.6 1.52
30 33.5 13 10.4
40 20.9 9.8 7.8
50 13.9 7.8 6.3 0.3
60 9.7 6.5 5.2
70 7.1 5.6 4.5
80 5.5 4.9 3.9
90 4.5 4.3 3.5
100 4.1 3.9 3.1
110 4 3.6 2.8
120 4.1 3.3 2.6
130 4.5 3 2.4
140 5 2.8 2.2
150 5.6 2.6 2.1
160 6.3 2.4 2
170 7.1 2.3 1.8
180 8 2.2 1.7
190 8.9 2.1 1.6
200 9.9 2 1.6 0.04
210 10.9 1.9 1.5
220 11.9 1.8 1.4

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Updated: 27-12-2024
Code Title Magnification Resolution Pack Size Availability Price Updated: 27-12-2024
OSAM4115T-CFVW Dino-Lite Edge cyan fluorescence digital microscope 20x~220x 1.3 MP Each 0 in stock (?) $1,489.00 AUD
