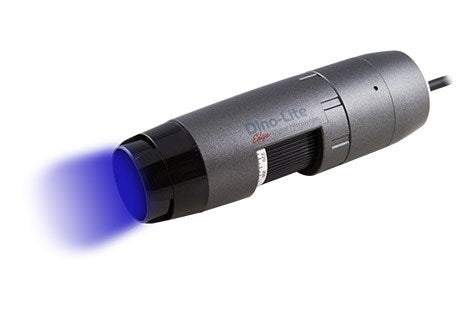

Dino-Lite Edge blue fluorescence digital microscope

The Dino-Lite EDGE AM4115T-GFBW digital microscope is optimised for research and viewing objects involving fluorescent objects using blue LEDs for excitation and has a 510nm emission filter that is designed to observe green fluorescence including but not limited to GFP (green fluorescent protein). The OSAM4115T-GFBW has a 1.3 Megapixels sensor that you can capture or record at 1.3 Megapixels resolutions, and can magnify up to 220x magnifications depending of working distance.Green fluorescent objects pop out under this handheld microscope and you can clearly see its green glow. If you need to observe without this special feature, it also has the capability of switching the light source from the excitation lights to white light which provides the convenience of locating and focusing on the object. Switch back to the main lighting for capturing green fluorescent objects.It is the perfect tool for looking at green fluorescent objects as it is built to make it stand o...

The Dino-Lite EDGE AM4115T-GFBW digital microscope is optimised for research and viewing objects involving fluorescent objects using blue LEDs for excitation and has a 510nm emission filter that is designed to observe green fluorescence including but not limited to GFP (green fluorescent protein). The OSAM4115T-GFBW has a 1.3 Megapixels sensor that you can capture or record at 1.3 Megapixels resolutions, and can magnify up to 220x magnifications depending of working distance.

Green fluorescent objects pop out under this handheld microscope and you can clearly see its green glow. If you need to observe without this special feature, it also has the capability of switching the light source from the excitation lights to white light which provides the convenience of locating and focusing on the object. Switch back to the main lighting for capturing green fluorescent objects.

It is the perfect tool for looking at green fluorescent objects as it is built to make it stand out. With its ability for high magnification and compact handheld size, it is also a space saver and all in one unit for picture and video of magnified green fluorescent objects. The AM4115T-GFBW is a desirable tool for researchers and users alike who are searching for a valuable tool in examining green fluorescent specimens.

Specifications:

Model AM4115T-GFBW Dino-Lite Edge
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 20x~220x
Sensor Color CMOS
Frame Rate Up to 30fps
Save Formats Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG

Movie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Microtouch Touch sensitive trigger on the microscope for taking pictures
Lighting Using 7 blue LEDs for excitation lighting and has a 510nm emission filter/1 white LED switched by software
Measurement Function Yes
Calibration Function Yes
Operating System Supported Windows XP/7/8/10/11
macOS 10.14 or later
Unit Weight 100g
Unit Dimension 10.5cm (H) x 3.2cm (D)
Package Dimensions 16cm (L) x 16cm (W) x 6cm (H)

Information about working distance and field of view:

M WD FOV (x) FOV (y) DOF
20 60.2 19.5 15.6 2.5
30 33.5 13 10.4 1.8
40 20.9 9.8 7.8 1.5
50 13.9 7.8 6.3
60 9.7 6.5 5.2
70 7.1 5.6 4.5 1.0
80 5.5 4.9 3.9
90 4.5 4.3 3.5
100 4.1 3.9 3.1
110 4 3.6 2.8
120 4.1 3.3 2.6
130 4.5 3 2.4
140 5 2.8 2.2
150 5.6 2.6 2.1
160 6.3 2.4 2
170 7.1 2.3 1.8
180 8 2.2 1.7
190 8.9 2.1 1.6
200 9.9 2 1.6
210 10.9 1.9 1.5
220 11.9 1.8 1.4 0.1

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Updated: 06-12-2024
Code Title Magnification Resolution Pack Size Availability Price Updated: 06-12-2024
OSAM4115T-GFBW Dino-Lite Edge blue fluorescence digital microscope 20x~220x 1.3 MP Each 0 in stock (?) $1,441.00 AUD
