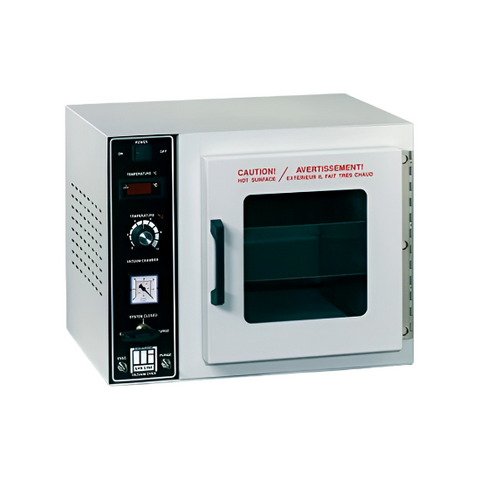

Thermo Scientific vacuum ovens, +5C to +200C

Multipurpose vacuum oven with two control configurations and display options, temperature control available as dial or LED. Radiant warm wall heating system provides optional uniformity. Conserves chamber space for drying, curing, vacuum embedding, and plating application. Silicone door gasket and a positive latch door maintains the seal for all vacuum levels. Exclusive polycarbonate safety shield protects door glass. Easy-to-clean 304 stainless steel chamber interior and powder coated heavy gauge steel exterior construction.Available in 12.5L up to 65L. Includes two removable aluminium shelves.Operation:Operating temperature range from ambient +5°C to 220°CVacuum level displayed on gauge from 0 to 76.2cmVacuum fittings require 0.6cm I.D. tubingModel 3606, 3608 and 3618 vacuum ovens feature a hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C @ 100°C; 25" Hg and built-in oven-te...

Multipurpose vacuum oven with two control configurations and display options, temperature control available as dial or LED. Radiant warm wall heating system provides optional uniformity. Conserves chamber space for drying, curing, vacuum embedding, and plating application. Silicone door gasket and a positive latch door maintains the seal for all vacuum levels. Exclusive polycarbonate safety shield protects door glass. Easy-to-clean 304 stainless steel chamber interior and powder coated heavy gauge steel exterior construction.

Available in 12.5L up to 65L. Includes two removable aluminium shelves.

Operation:

  • Operating temperature range from ambient +5°C to 220°C
  • Vacuum level displayed on gauge from 0 to 76.2cm
  • Vacuum fittings require 0.6cm I.D. tubing
  • Model 3606, 3608 and 3618 vacuum ovens feature a hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C @ 100°C; 25" Hg and built-in oven-temperature protection
  • Model 3606 have top-mounted independent evacuation and venting vacuum fittings; all other models features front-mounted three-way valve for evacuation, venting, and purging of inert gases (e.g. nitrogen or argon) with vacuum fitting on front of unit

Specifications:

Model 3606 3608 3618
Chamber
(W x H x D)		 20 x 20 x 30cm 25x 25 x 30cm 36 x 36 x 51cm
Overall
(W x H x D)		 43 x 44 x 41cm 50 x 41 x 41cm 64 x 56 x 64cm
Voltage 240V
Power 600W
Chamber Volume 12.5L 19.8L 65.1L
Net Weight 26kg 38kg 65.1kg
Ship Weight 50kg 59kg 134kg
Operating
Temperature
 Ambient +5C to 200°C
Rise Time (Ambient to 100°C
 100 minutes
 4hrs* 2 hours
Control @ 100°C, 25" Hg
 ±1.5°C
 ±1.0°C
Uniformity @ 100°C, 25" Hg ±2.2°C
 ±4.0°C
 ±5.0°C
Vacuum Range
 0-30" Hg

*Model 3608 specifications determined at 150°C

Updated: 24-03-2026
Code Style Capacity Pack Size Availability Price Updated: 24-03-2026
EMS63234-20 Analogue 12.5L Each No ETA P.O.R. Quote
EMS63236-20 Digital 19.8L Each No ETA P.O.R. Quote
EMS63237-20 Analogue 65.1L Each No ETA P.O.R. Quote
EMS63238-20 Digital 65.1L Each No ETA P.O.R. Quote
