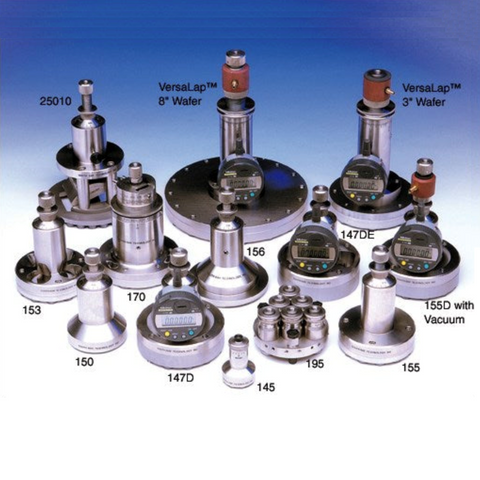

Vacuum mounting blocks for lapping and polishing fixtures, Model 145/150

Vacuum Mounting Bocks are for use with lapping and polishing fixture. Made of stainless steel.Model 145 - This model accommodates up to a 12.7mm sample mount, which is held in place using a threaded draw rod and locating pin. This small, lightweight fixture is ideal for hand lapping or polishing of samples less than 12.7mm in diameter.Model 150 - This model accommodates sample mounts up to 25mm in diameter for both parallel and tapered samples. Angled blocks up to 45° are available and are simply mounted in place of standard parallel mounts when tapered sections are desired. The mounting blocks from this fixture are directly transferable from any cutting saw. The Model 150 is for general-purpose fixture and is capable of lapping and polishing multiple small or large samples up to 25mm in diameter.

Vacuum Mounting Bocks are for use with lapping and polishing fixture. Made of stainless steel.

Model 145 - This model accommodates up to a 12.7mm sample mount, which is held in place using a threaded draw rod and locating pin. This small, lightweight fixture is ideal for hand lapping or polishing of samples less than 12.7mm in diameter.

Model 150 - This model accommodates sample mounts up to 25mm in diameter for both parallel and tapered samples. Angled blocks up to 45° are available and are simply mounted in place of standard parallel mounts when tapered sections are desired. The mounting blocks from this fixture are directly transferable from any cutting saw. The Model 150 is for general-purpose fixture and is capable of lapping and polishing multiple small or large samples up to 25mm in diameter.
