Vibrating microtomes
This new entry level microtome is perfect for techniques such as histology, organotype slice culture and low resolution imaging with a fixed blade holder and a mechanism Z-axis error rate of 5-8?m. The 5100mz-Plus and 5100mz are very competitively priced high precision units with a Z-axis deflection of only 1-2 microns and a blade advance controllable to 10 microns/sec. On all units the section thickness step size is 0.001mm. The 7000smz-2 and 5100mz-Plus are supplied with their own Z-axis calibration verifier.

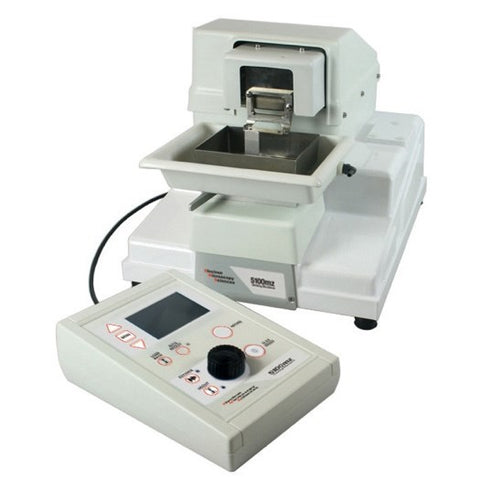

Model 5100mz -Â Vibrating Microtome, includes demountable tissue bath and sample blades in stainless steel and ceramic. 115V or 220V
Model 5100mz-Plus -Â Vibrating Microtome, includes demountable tissue bath and sample blades in stainless steel and ceramic. 115V or 220V
Model 7000smz-2 -Â Programmable Vibrating Microtome, includes demountable tissue bath and sample blades in stainless steel and ceramic, plus 'Opti-Cal' z-axis calibration device. 115V or 230V
Specifications | 7000smz-2 | 5100mz series |
Section thickness step size | 1?m | 1?m |
Vertical (Z-Axis) calibration device 'Opti-cal' is calibrated with metrology equipment traceable to National Standards |
'Opti-cal' included as standard | 'Opti-cal' included as standard for 5100mz-Plus Optional extra for 5100mz |
Optimal Z-axis Deflection | Sub-?m (? 0.1?m) | ? 5-8?m (2.0?m ? 0.1 with calibration upgrade kit) |
Max specimen size | 33x50x19 | 33x50x19 |
Maximum (vertical) travel of bath table | 19mm | 19mm |
Memory to store section thickness | Yes | Yes |
Multiple user settings | 8 different | 8 different |
Cutting head advance speed while slicing | From a minimum of -1.00mm/sec, through zero to a maximum of +1.00mm/sec | From a minimum of -1.00mm/sec, through zero to a maximum of +1.00mm/sec |
Cutting head advance speed resolution while slicing | 0.01mm/sec | 0.10mm/sec |
Cutting head advance speed max (fast mode when not slicing) | +/- 4.0mm/sec | +/- 2.0mm/sec |
Specimen retraction as blade retracts | Yes | Yes |
Cutting head retraction speed (fast mode) | 4.0mm/sec | 2.0mm/sec |
Operating Modes | Manual, semi-auto 'slice window' or fully automated 'profile repeat' | Manual or semi-auto 'slice window' |
Blade oscillation frequency range (dependent on amplitude) | 50-120Hz | 50-80Hz |
Frequency step size | 5Hz | 5Hz |
Blade oscillation amplitude | Minimum: 0.5mm (nominal) Maximum: 2.5mm (nominal) |
Minimum: 0.5mm (nominal) Maximum: 1.5mm (nominal) |
Amplitude step size | 0.25mm (nominal) | 0.5mm (nominal) |
Cooling options | Ice bath or optional Model 7610A Tissue Bath Cooler | Ice bath or optional Model 7610A Tissue Bath Cooler |
Power requirements | 115VAC 60Hz or 230VAC 50Hz (selectable) |
90-264 VAC 50/60Hz (switch mode PSU) |
Power rating | 100W | 65W |
Fuse rating (115v or 230v) | T2A 250VAC | T2A 250VAC |
Light source | 100-240VAC 3W mains connection | Powered from 5100mz |
Dimensions | 420mm W x 400mm D x 270mm H (excluding light source and microscope) | 350mm W x 450mm D x 350mm H (excluding magnifier/light source) |
Weight | 35kg | 15kg |
Code | Title | Style | Pack Size | Availability | Price | Updated: 08-05-2024 |
---|---|---|---|---|---|---|
EMS5100MZ | Vibrating microtomes | 5100mz | Each | See above | Quote only | Quote |
Quote | ||||||
EMS5100MZ-PLUS | Vibrating microtomes | 5100mz-Plus | Each | See above | Quote only | Quote |
Quote | ||||||
EMS7000smz-2 | Vibrating microtomes | 7000smz-2 | Each | See above | Quote only | Quote |
Quote |
