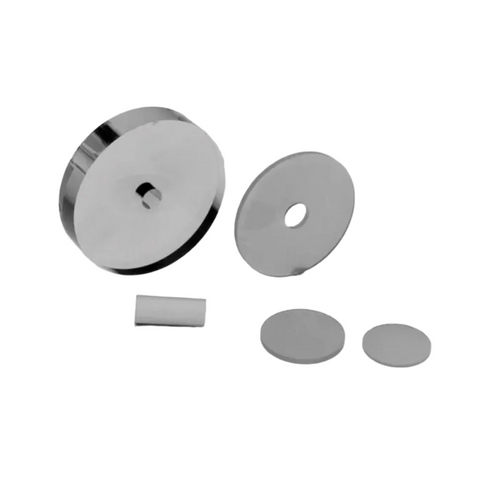

YAP single crystal scintillator discs

YAP (Yttrium Aluminium Perovskite activated by Ce3+) shares the same advantages as YAG but is more efficient in terms of light output than YAG crystals. As well, the emission spectrum peaks at about 378nm, and this corresponds closely to the maximum sensitivity of the S11 photocathode which in general is used in most scanning electron microscopes. (There would be more improvement in signal by using a YAP crystal rather than YAG in these microscopes). The decay time of YAP (40ns) is faster than YAG (80ns) so its overall performance is superior to YAG. YAP crystals should be coated with 50nm of aluminium prior to use.

Code Title Instrument Size Pack Size Availability Price Updated: 07-10-2024
EMS82070 YAP single crystal scintillator discs Phillip Quad Detector 6.2 x 1mm Each See above $1,544.00 AUD
EMS82072 YAP single crystal scintillator discs ISI Mini-SEM 7.5 x 1mm Each See above $1,544.00 AUD
EMS82073 YAP single crystal scintillator discs JEOL JSM T20, T200 T300, 340 8.5 x 2mm Each See above $1,544.00 AUD
EMS82074 YAP single crystal scintillator discs ETEC 9.0 x 3mm Each See above $1,544.00 AUD
EMS82076 YAP single crystal scintillator discs Cambridge except S600 AMRAY 1200 10.0 x 1mm Each See above $1,544.00 AUD
EMS82077 YAP single crystal scintillator discs Cambridge S600 12.0 x 1mm Each See above $1,544.00 AUD
EMS82078 YAP single crystal scintillator discs Zeiss SEM 12.0 x 1mm Each See above $1,544.00 AUD
EMS82081 YAP single crystal scintillator discs ISI Mini-SEM, JEOL 13.7 x 1mm Each See above $1,544.00 AUD
EMS82082 YAP single crystal scintillator discs Novascan, SEMCO/Zeiss 16.4 x 1mm Each See above $1,544.00 AUD
EMS82086 YAP single crystal scintillator discs JEOL U3, JSM2 19.0 x 1mm Each See above $1,544.00 AUD
EMS82088 YAP single crystal scintillator discs ARL SEMQ 19.0 x 7.3mm Each See above $1,544.00 AUD
EMS82089 YAP single crystal scintillator discs Hitachi w/metal ring. 19.8 x 1mm Each See above $1,544.00 AUD
EMS82090 YAP single crystal scintillator discs AMRAY except1200 JEOL 50A, 35, Hitachi 20.0 x 1mm Each See above $1,544.00 AUD
EMS82092 YAP single crystal scintillator discs Phillips SEM 20.0 x 2mm Each See above $1,544.00 AUD
