NE54 eyepiece reticles, two vertical lines

Crossed Gauge Lines - NE53, N54Use as crossed lines, but for the measuring of distances between the lines. Greater accuracy can be obtained by locating the specimen detail between the graticules gauge pair.PatternDescriptionDiameterProductNE53Two vertical lines 0.10mm apart with horizontal line. Image covers the entire field of view.Surface chrome image.16mmEMS67986-1619mmEMS67986-1921mmEMS67986-21NE54Two vertical lines 0.2mm apart.

Crossed Gauge Lines - NE53, N54

Use as crossed lines, but for the measuring of distances between the lines. Greater accuracy can be obtained by locating the specimen detail between the graticules gauge pair.

Pattern	Description	Diameter	Product

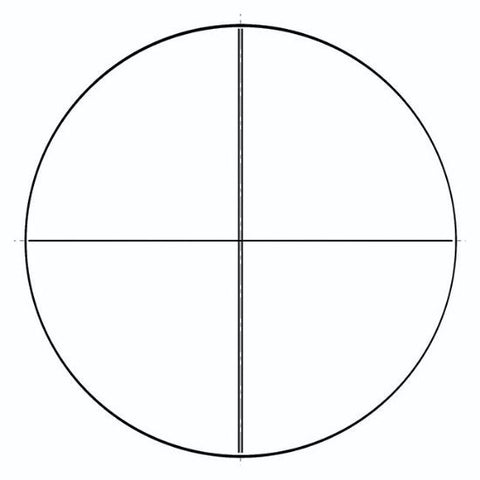

NE53	Two vertical lines 0.10mm apart with horizontal line. Image covers the entire field of view. Surface chrome image.	16mm	EMS67986-16
		19mm	EMS67986-19
		21mm	EMS67986-21
NE54	Two vertical lines 0.2mm apart.	16mm	EMS67975-16
		19mm	EMS67975-19
		21mm	EMS67975-21
		Custom	EMS67975-50

Please choose carefully. Returns of this item are subject to approval.

Code	Title	Type	Size	Pack Size	Availability	Price
EMS67975-16	NE54 eyepiece reticles, two vertical lines	NE54	16mm dia.	Each	See above	$208.00 AUD

EMS67975-19	NE54 eyepiece reticles, two vertical lines	NE54	19mm dia.	Each	See above	$208.00 AUD

EMS67975-21	NE54 eyepiece reticles, two vertical lines	NE54	21mm dia.	Each	See above	$208.00 AUD

EMS67975-50	NE54 eyepiece reticles, two vertical lines	NE54	50mm dia.	Each	See above	$341.00 AUD
