NE41 reticle scales, horizontal

Horizontal Scales - NE41

These scales are used for the measuring of lengths of specimen or distances between points on a variety of different shaped objects. NE1 scale shown: This eyepiece graticule has an overall length of 10.00mm with 100 subdivisions of 0.1mm. When used with a x10 objective, each division will represent 10 microns on the specimen. By dividing the division of the chosen graticule by the magnification of the objective, one obtains an approximate value that each division will represent on the stage.

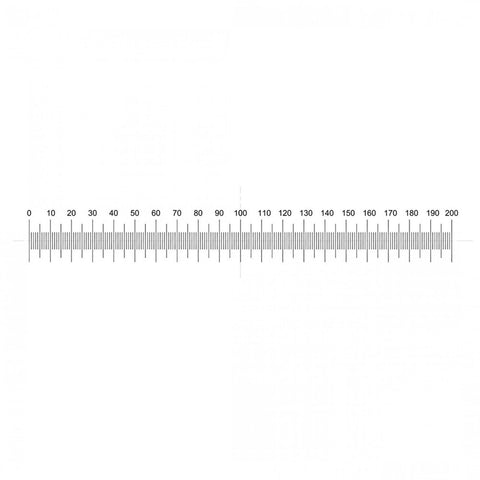

• Horizontal micrometer scale 10mm long with 200 subdivisions.
• Surface chrome image.
