G44 eyepiece reticles, metallurgical (EMS)
Metallurgy ReticlesStandard pattern discs for metallurgical stereometric analysis of grain size in polished metal sections.CodeDescriptionEMS68065G41 ASTM Austenite 1:1 Graticule, 19mm and 21mm diameterEMS68066G42 E112 Plate 1 Glass Sandwich Graticule, 19mm and 21mm diameterEMS68067G43 ASTM Carbide Glass Sandwich Graticule, 19mm and 21mm diameterEMS68068G44 ASTM E45 Graticule, 19mm and 21mm diameterRoot 2 sides, 7.1mm square, 10mm scaleEMS68069G4...
Metallurgy Reticles
Standard pattern discs for metallurgical stereometric analysis of grain size in polished metal sections.
| Code | Description |
| EMS68065 | G41 ASTM Austenite 1:1 Graticule, 19mm and 21mm diameter |
| EMS68066 | G42 E112 Plate 1 Glass Sandwich Graticule, 19mm and 21mm diameter |
| EMS68067 | G43 ASTM Carbide Glass Sandwich Graticule, 19mm and 21mm diameter |

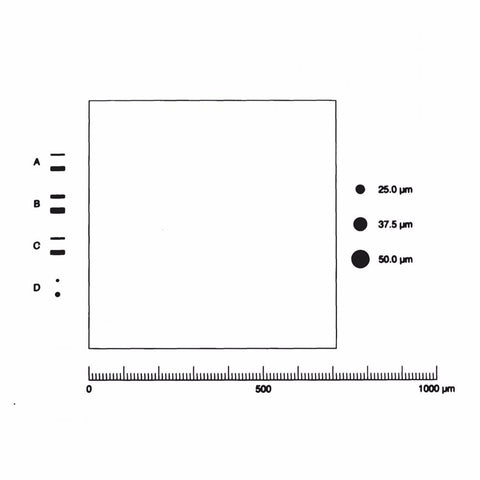

| EMS68068 | G44 ASTM E45 Graticule, 19mm and 21mm diameter Root 2 sides, 7.1mm square, 10mm scale |
| EMS68069 | G45 ASTM E19-46 Glass Sandwich Graticule, 19mm and 21mm diameter |
| EMS68070 | G46 E19-46 Disc Root 2 Glass Sandwich Graticule, 19mm and 21mm diameter |
| EMS68084 | G54 ASTM G562 24-point Circular Grid Graticule, 16mm, 19mm and 21mm diameter |
| EMS68085 | G55 ASTM G562 25-point Square Grid Graticule, 16mm, 19mm and 21mm diameter |
Please choose carefully. Returns of this item are subject to approval.
| Code | Title | Type | Size | Pack Size | Availability | Price | Updated: 10-05-2024 |
|---|---|---|---|---|---|---|---|
| EMS68068-19 | G44 eyepiece reticles, metallurgical (EMS) | G44 | 19mm dia. | Each | See above | $497.00 AUD | |
| EMS68068-21 | G44 eyepiece reticles, metallurgical (EMS) | G44 | 21mm dia. | Each | See above | $497.00 AUD | |
