EMS eyepiece reticles, scale divisions
These standard reticles are manufactured to use with our microscope eyepieces. High quality, precision made with different designs and styles that help you do your work. Other eyepiece diameter sizes can be supplied as a special order.
Eyepiece diameters: 19mm and 21mm, 2mm-20mm scale, 50-200 divisions of 0.01-0.1mm.
| Code | Description | Divisions |
| EMS60270-19 | RET 14, 19mm Diameter, Scale 2mm |
200 Div of 0.01mm |
| EMS60270-21 | RET 14, 21mm Diameter, Scale 2mm |
200 Div of 0.01mm |
| EMS60271-19 | RET 15, 19mm Diameter, Scale 5mm |
50 Div. of 0.1mm |
| EMS60271-21 | RET 15, 21mm Diameter, Scale 5mm |
50 Div of 0.1mm |
| EMS60272-19 | RET 11, 19mm Diameter, Scale 5mm |
100 Div of 0.05mm |
| EMS60272-21 | RET 11, 21mm Diameter, Scale 5mm |
100 Div of 0.05mm |

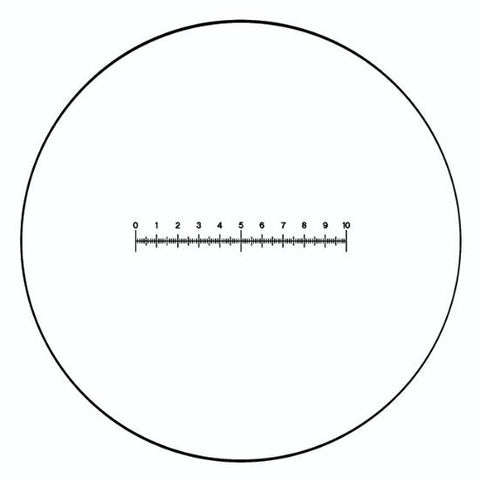

| EMS60273-19 | RET 10, 19mm Diameter, Scale 10mm |
100 Div of 0.1mm |
| EMS60273-21 | RET 10, 21mm Diameter, Scale 10mm |
100 Div of 0.1mm |
| EMS60274-19 | RET 16, 19mm Diameter, Scale 10mm |
200 Div of 0.05mm |
| EMS60274-21 | RET 16, 21mm Diameter, Scale 10mm |
200 Div of 0.05mm |
| EMS60276-19 | RET 12, 19mm Diameter, Scale 20mm |
200 Div of 0.10mm |
| EMS60276-21 | RET 12, 21mm Diameter, Scale 20mm |
200 Div of 0.1mm |
All reticles are chrome on glass and positive polarity.
| Code | Title | Type | Size | Pack Size | Availability | Price | Updated: 16-01-2025 |
|---|---|---|---|---|---|---|---|
| EMS60273-19 | EMS eyepiece reticles, scale divisions | Reticle 10 | 19mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60273-21 | EMS eyepiece reticles, scale divisions | Reticle 10 | 21mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60272-19 | EMS eyepiece reticles, scale divisions | Reticle 11 | 19mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60272-21 | EMS eyepiece reticles, scale divisions | Reticle 11 | 21mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60276-19 | EMS eyepiece reticles, scale divisions | Reticle 12 | 19mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60276-21 | EMS eyepiece reticles, scale divisions | Reticle 12 | 21mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60270-19 | EMS eyepiece reticles, scale divisions | Reticle 14 | 19mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60270-21 | EMS eyepiece reticles, scale divisions | Reticle 14 | 21mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60271-19 | EMS eyepiece reticles, scale divisions | Reticle 15 | 19mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60271-21 | EMS eyepiece reticles, scale divisions | Reticle 15 | 21mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60274-19 | EMS eyepiece reticles, scale divisions | Reticle 16 | 19mm dia. | Each | 0 in stock (?) | $293.00 AUD | |
| EMS60274-21 | EMS eyepiece reticles, scale divisions | Reticle 16 | 21mm dia. | Each | 0 in stock (?) | $293.00 AUD |
* Ordering Schedule
This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 4 weeks.
This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
