miniLight light source sets, 2W

miniLightConstructed from the highest quality material and small as its name, this miniLight offers the most universal light source, handling many tasks that require a bright light but with a small foot print that fits into most locations.miniLight components:Lamp - Available with 2W power LED in 3 models each producing 15°, 28°, and 42° light cones.The miniLight's main component is the miniLamp. This is a small but powerful light source. It is able to brightly illuminate small areas with the following properties:Shines very bright on a small areaLow dissipation loss - no hot partsLong life - lifetime of a LED is 50,000 hoursLittle power needed (1W)Adjustable intensityCE compatibleGooseneck - For the mounting of the miniLightFlexible - easy to adjustBoth end...

miniLight

Constructed from the highest quality material and small as its name, this miniLight offers the most universal light source, handling many tasks that require a bright light but with a small foot print that fits into most locations.

miniLight components:

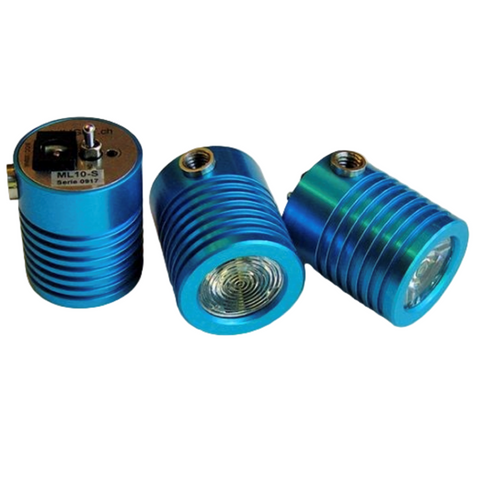

Lamp - Available with 2W power LED in 3 models each producing 15°, 28°, and 42° light cones.

The miniLight's main component is the miniLamp. This is a small but powerful light source. It is able to brightly illuminate small areas with the following properties:

  • Shines very bright on a small area
  • Low dissipation loss - no hot parts
  • Long life - lifetime of a LED is 50,000 hours
  • Little power needed (1W)
  • Adjustable intensity
  • CE compatible

Gooseneck - For the mounting of the miniLight

  • Flexible - easy to adjust
  • Both ends come with different threads: one for the miniLamp and one which connects to the base
  • Made from brass and is anodised black
  • End-to-end measures 184mm (172mm actual length)

Magnetic Base - For mounting the miniLight

  • Made from stainless steel with the magnet encased
  • Threaded centre for mounting the gooseneck or mounting bar
  • Easily affixes to any magnetised surface
  • Affix force is 64N

Steel Base - For mounting the MiniLight with a heavy base

  • Stainless steel
  • Threaded centre for gooseneck or mounting rod
  • Weight 450g
  • Measures: 65mm diameter x 18mm height

Mounting Rods - For mounting the miniLight in a stable position

  • Made from stainless steel
  • Easy to mount and adjust the lamp with adjustable joint
  • Short rod to mount Lamp - Long Rod to mount to the Steel Base

Joint - Connect the Mounting Rods

This joint is used to connect the mounting rod together in any angle, any position so the Lamp shines the way you want

  • Very precisely made
  • Anodised aluminum
  • Knurled tighten screw

Power Supply 12V - to power the miniLight

Supply with international AC-plug for feeding miniLight lamp with a constant tension of 12Volts. It is characterised by the following properties:

  • Input voltage 90-264VAC
  • Input frequency 47-63Hz
  • Output Voltage 12V
  • Power 8W
  • AC-Connector for EU, GB, US, AUS
  • Operating temperature 0-40°
  • Weight 135gr. (without AC-plug)
  • Dimensions 69.2 x 43.3 x 29.8mm without AC plug
  • International approval UL60950, EN60950, SAA, PSE, CE, FCC Part 15 Class B

Application

Some applications that the miniLight is ideal for:

  • Micro-technical working places, mounting, inspection
  • Micro-electrical assembly
  • Microscope, microbiology, cell counting
  • Block trimming, etc.

Technical Data:

Model  ML-20 Series
Supply: 110-230 VAC (12V (±30%)
Currant cons.: 300mA @ 12V
Power LED: 2W
Flux lumen min.: 160 lumens
Flux lumen typical: 180 lumens
Temp. case: 65°C @tamb=25°C
Light cone:* 15° / 28° / 42°
Fixation: M6 ou D28
Dimensions: 28mm Dia x 34mm L
Weight: 40g
Accessory power supply, steel base, magnetic base, gooseneck, fixation bare, joint

*Definition of light cone: Angle in which the intensity is on the border of the cone half than in the middle of the cone.

Attention:

Never look direct in the light of the lamp, otherwise you risk to injure your eyes

Set 1: miniLight with 28 deg cone, gooseneck, magnetic base and power supply

Set 2: miniLight with 28 deg cone, gooseneck, steel base and power supply

Set 3: miniLight with 28 deg cone, mounting rod, magnetic base and power supply

Set 4: miniLight with 28 deg cone, mounting rod, steel base and power supply

Updated: 15-01-2025
Code Title Type Pack Size Availability Price Updated: 15-01-2025
EMS71666-01 miniLight light source sets, 2W Set 1 Each 0 in stock (?) $735.00 AUD
EMS71666-02 miniLight light source sets, 2W Set 2 Each 0 in stock (?) $743.00 AUD
EMS71666-03 miniLight light source sets, 2W Set 3 Each 0 in stock (?) $720.00 AUD
EMS71666-04 miniLight light source sets, 2W Set 4 Each 0 in stock (?) $737.00 AUD
EMS71666-05 miniLight light source sets, 2W Complete set Each 0 in stock (?) $1,680.00 AUD
EMS71666-15 miniLight light source sets, 2W 15 degree light cone Each 0 in stock (?) $615.00 AUD
EMS71666-28 miniLight light source sets, 2W 28 degree light cone Each 0 in stock (?) $615.00 AUD
EMS71666-42 miniLight light source sets, 2W 42 degree light cone Each 0 in stock (?) $615.00 AUD
