miniLight light source sets, 1W

Constructed from the highest quality material and small as its name, this miniLight offers the most universal light source, handling many tasks that require a bright light but with a small foot print that fits into most locations.

miniLight is ideal for micro-technical working places, mounting, inspection, micro-electrical assembly, microscope, microbiology, cell counting and block trimming, etc.

miniLight components

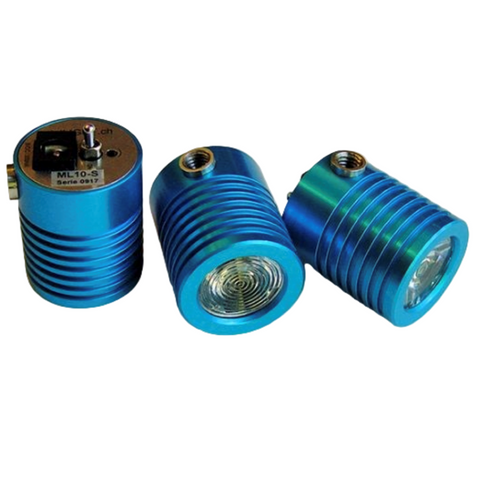

Lamp - Available with 1W power LED in 3 models each producing 15°, 28°, and 42° light cones. This is a small but powerful light source. It is able to brightly illuminate small areas. Shines very bright on a small area with low dissipation loss - no hot parts. Long life - lifetime of a LED is 50,000 hours with adjustable intensity. CE compatible.

Gooseneck - For the mounting of the miniLight is flexible and easy to adjust. Both ends come with different threads: one for the minilamp and one which connects to the base. Made from brass and is anodised black. End-to-end measures 184mm (172mm actual length)

Magnetic Base - For mounting the miniLight is made from stainless steel with the magnet encased. Threaded centre for mounting the gooseneck or mounting bar. Easily affixes to any magnetised surface. Affix force is 64N.

Steel Base - For mounting the MiniLight with a heavy stainless steel base. Threaded centre for gooseneck or mounting rod. Weight 450g. Measures: 65mm diameter x 18mm height.

Mounting Rods - For mounting the miniLight in a stable position made from stainless steel. Easy to mount and adjust the lamp with adjustable joint. Short rod to mount Lamp - Long Rod to mount to the Steel Base

Joint - Connect the Mounting Rods together in any angle, any position so the Lamp shines the way you want. Very precisely made from anodised aluminium with knurled tighten screw.

Power Supply 12V - to power the miniLight

Supply with international AC-plug for feeding miniLight lamp with a constant tension of 12Volts. It is characterised by the following properties:

• Input voltage 90-264VAC
• Input frequency 47-63Hz
• Output Voltage 12V
• Power 8W
• AC-Connector for EU, GB, US, AUS
• Operating temperature 0-40°
• Weight 135gr. (without AC-plug)
• Dimensions 69.2 x 43.3 x 29.8mm without AC plug
• International approval UL60950, EN60950, SAA, PSE, CE, FCC Part 15 Class B

Technical Data:

*Definition of light cone: Angle in which the intensity is on the border of the cone half than in the middle of the cone.

Attention:

Never look direct in the light of the lamp, otherwise you risk to injure your eyes

Set 1: miniLight with 15° light cone, gooseneck, magnetic base and power supply.

Set 2: miniLight with 28° light cone, gooseneck, steel base, and power supply.

Set 3: miniLight with 28° light cone, gooseneck, magnetic base and power supply.

Set 4: miniLight with 28° light cone, steel base, mounting rod, joint and power supply.
