S28 stage micrometer, counting grid (EMS)

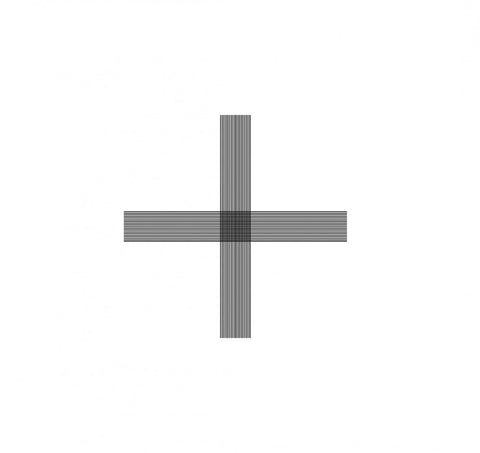

Counting Grid Slide for transmitted light with 20 x 20 grid of 0.01mm (10µm) squares.
Line Thickness - 0.002mm +0.001mm / 0.003mm +0.001mm Centre Line
Glass Type and Thickness - B270 1mm thick
Overall Tolerance - ±0.0015mm
Mount - Black Anodised Aluminium Slide (76mm x 25mm x 1.5mm)
Orientation - Correct on top surface
Graticules Optics stage micrometers and calibration standards are used all round the world for calibrating microscopes, imaging systems and co-ordinate measuring equipment. Where you need to have traceability of calibration, Graticules Optics offer certificates of calibration, traceable to International standards.
| Code | Cerifitcate | Pack Size | Availability | Price | Updated: 11-10-2025 |
|---|---|---|---|---|---|
| EMS68045-28 | None | Each | 0 in stock (?) | $436.00 AUD |
* Ordering Schedule
This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 4 weeks.
This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
