PS52 stage micrometers, dual scale calibration slides (EMS)

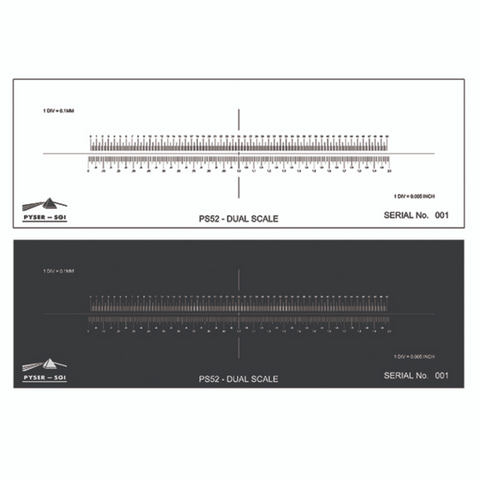

Calibration slides with dual imperial/metric scales.The PS52P is for transmitted light applications and has a bright chrome positive image. The PS52N has a negative pattern, formed in low reflective chrome for incident light applications to give excellent contrast. Both are ideal for calibrating optical products with a large field of view, such as stereo microscopes or imaging systems.Features:50mm Metric scales and 2" imperial (English) on a single slidePositive and negative versionsUnique serial number for traceabilityAvailable with internationally traceable certificates of calibration

Calibration slides with dual imperial/metric scales.The PS52P is for transmitted light applications and has a bright chrome positive image. The PS52N has a negative pattern, formed in low reflective chrome for incident light applications to give excellent contrast. Both are ideal for calibrating optical products with a large field of view, such as stereo microscopes or imaging systems.

Features:

• 50mm Metric scales and 2" imperial (English) on a single slide
• Positive and negative versions
• Unique serial number for traceability
• Available with internationally traceable certificates of calibration

Technical Data

Specifications:

Metric scale	50mm in 0.1mm divisions
Imperial (English) scale	2" in 0.005" divisions
Line thickness	12µm
Glass size/type	76mm x 25mm x 1.5mm, B270
Serial number	Unique serial number on slide surface
Case	Supplied in polished wooden box
Calibration certificate	Can be supplied with UKAS certificate of calibration which is internationally traceable and acceptable in all world markets

Graticules Optics stage micrometers and calibration standards are used all round the world for calibrating microscopes, imaging systems and co-ordinate measuring equipment. Where you need to have traceability of calibration, Graticules Optics offer certificates of calibration, traceable to International standards.
