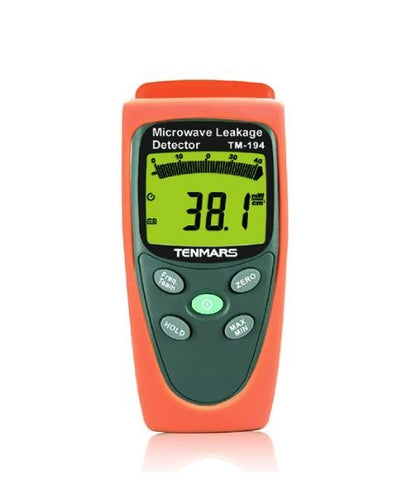

Microwave leakage detector

Use this meter for measuring electromagnetic fields of 2.45GHz (microwave frequency) or normal (50MHz to 3.5GHz).It is capable of measuring the electromagnetic field radiation intensity that is produced from welding equipment, microwave ovens, and other environments, etc.Ranges: 2.45GHz (microwave frequency) or 50MHz to 3.5GHzRF power density: 0.01~2.700m W/cm2Data hold (HOLD)Maximum (MAX) HoldMinimum (MIN) HoldZero functionBuild in alarm settingLow battery indicationOverload indicationSpecificationsDisplay3¾ digits LCD, maximum reading 3999Resolution0.001mW/cm2Frequency Response50MHz to 3.5GHzSensorSingle AxisAccuracy±2dB at 2.45GHz ± 50MHzOverloadLCD ...

Use this meter for measuring electromagnetic fields of 2.45GHz (microwave frequency) or normal (50MHz to 3.5GHz).

It is capable of measuring the electromagnetic field radiation intensity that is produced from welding equipment, microwave ovens, and other environments, etc.

  • Ranges: 2.45GHz (microwave frequency) or 50MHz to 3.5GHz
  • RF power density: 0.01~2.700m W/cm2
  • Data hold (HOLD)
  • Maximum (MAX) Hold
  • Minimum (MIN) Hold
  • Zero function
  • Build in alarm setting
  • Low battery indication
  • Overload indication

Specifications

Display 3¾ digits LCD, maximum reading 3999
Resolution 0.001mW/cm2
Frequency Response 50MHz to 3.5GHz
Sensor Single Axis
Accuracy ±2dB at 2.45GHz ± 50MHz
Overload LCD display "OL"
Sample Rate 2.5 times per second
Battery 9V NEDA 1604, IEC 6F22 or JIS 006P
Battery Life Approximate 100 hours
Operating Temperature & Humidity 5°C to 40°C, below 80% RH
Storage Temperature & Humidity -10°C to 60°C, below 70%
Weight Approx. 170g
Dimensions (L x W X H) 130 x 56 x 38mm
Accessories User's manual, 9V Battery, Carrying Case
Code Title Pack Size Availability Price Updated: 21-09-2024
EMS72083-00 Microwave leakage detector Each See above $390.00 AUD
