QuantomiX WETSEM starter kits and accessories

The QX-202 Starter Kits include QX-202 capsules and all the accessories necessary to get started with the QuantomiX WETSEM technology.

The kit contains:

1. QX-202 Capsules (24 units for the -24 and 48 units for the -48)
2. MP-12 Multi-well Plates (2 units)
3. IB-64 QX Imaging Buffer
4. RT-56 QX Calibration Capsule
5. Calibration Capsule Insert
6. MicroMan Pippetor
7. M-25 Tips
8. M-25 Plungers
9. User Manual, Training CD, Imaging Quick Guide

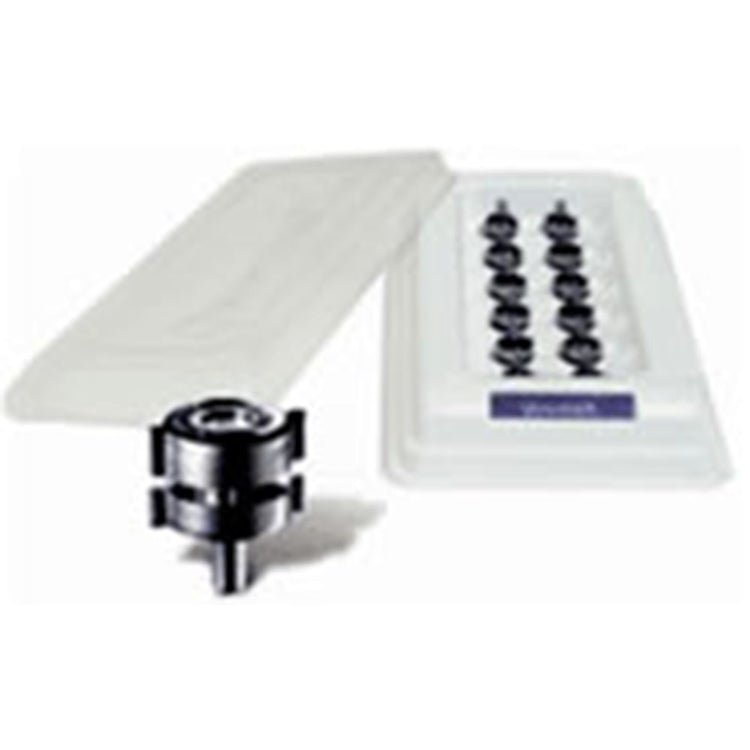

QX-202 capsules: Used for in-situ SEM imaging of various dynamic hydration processes. They can be used for imaging the hydration process of cement, gypsum and other materials. The unique design of the QX-202 capsules allows extended studies to be performed inside the SEM vacuum chamber - the dynamic process can be followed for up to 24 hours, removing the need for multiple-sample imaging or repetitive venting of the SEM. There is no need for coating, drying or freezing of the samples. Simply place the sample in the capsule, seal it and image. The samples can be visualised directly using a BSE detector. The QX-202 capsules are intended for single use and are supplied in boxes of 24 units.

MP-12 multi-capsule plate - The Multi-capsule plate is designed to enable parallel handling of a number of individual QX-202 capsules. It is used for holding the capsules during specimen preparation, and for storage.

Microman M25 and tips - Gilson Microman pipette is specially designed to accurately displace small quantities of viscous solutions and mixtures. Also supplied is a box of single-use capillaries and pistons which are used in conjunction with the Microman M25.
