Gilder finder grids, style F1 (EMS)

Gilder finder grids are TEM grids used to identify specific areas.3.05mm diameter, 18um thicknessMaterial: Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP)Locator GridReference/Index Grid1 Thick bars dividing regions into 6 thin bar areas, which are identified by a numeric system.2 The block of 625 (25 x 25) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 25 cells has a central alphabet letter from A to Y for identification purposes.3 The block of 1152 (32 x 36) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 36 (6 x 6) cells has a central number from 1 to 32 for identification purposes.Available:

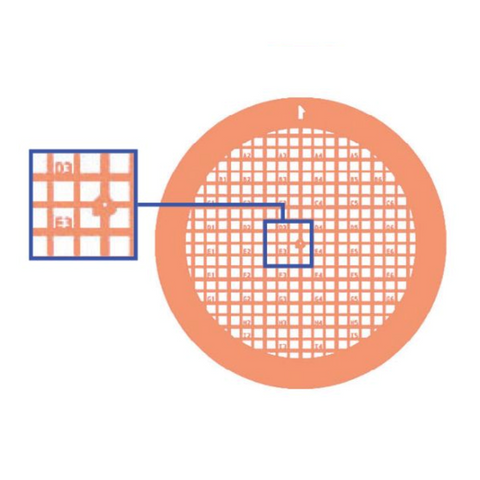

Gilder finder grids are TEM grids used to identify specific areas.

3.05mm diameter, 18um thickness
Material: Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP)

  • Locator Grid
  • Reference/Index Grid

1 Thick bars dividing regions into 6 thin bar areas, which are identified by a numeric system.

2 The block of 625 (25 x 25) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 25 cells has a central alphabet letter from A to Y for identification purposes.

3 The block of 1152 (32 x 36) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 36 (6 x 6) cells has a central number from 1 to 32 for identification purposes.

Available:

    Technical Data µm
Type Product Pitch Hole Bar
200 mesh1 EMSG200F1-Cu 125 90-100 35-12
  EMSG200F1-Ni 125 90-100 35-12
  EMSG200F1-CP 125 90-100 35-12
  EMSG200F1-Au 125 90-100 35-12
300 mesh2 EMSG300F1-Cu 83 63 20
  EMSG300F1-Ni 83 63 20
  EMSG300F1-Au 83 63 20
400 mesh3 EMSG400F1-Cu 62 47 15
  EMSG400F1-Ni 62 47 15
  EMSG400F1-Au 62 47 15
Updated: 28-11-2025
Code Material Mesh Size Pack Size Availability Price Updated: 28-11-2025
EMSG200F1-AU Gold 200 mesh Pack/50 0 in stock (?) $126.00 AUD
EMSG200F1-CP Copper/palladium 200 mesh Pack/100 0 in stock (?) $100.00 AUD
EMSG200F1-CU Copper 200 mesh Pack/100 0 in stock (?) $76.00 AUD
EMSG200F1-NI Nickel 200 mesh Pack/100 0 in stock (?) $114.00 AUD
EMSG300F1-AU Gold 300 mesh Pack/50 0 in stock (?) $138.00 AUD
EMSG300F1-CU Copper 300 mesh Pack/100 0 in stock (?) $88.00 AUD
EMSG300F1-NI Nickel 300 mesh Pack/100 0 in stock (?) $124.00 AUD
EMSG400F1-AU Gold 400 mesh Pack/50 0 in stock (?) $138.00 AUD
EMSG400F1-CU Copper 400 mesh Pack/100 0 in stock (?) $88.00 AUD
EMSG400F1-NI Nickel 400 mesh Pack/100 0 in stock (?) $123.00 AUD
