Formvar on carbon film coated grids, single hole

Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:Molybdenum grids in place of Au, Cu, or NiAs Silicone freeWith ultra-thin thickness (thickness can be requested)Extra thick thicknessNOTE: All of our film is laid on the shiny side of the grid.A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness range is as follows:Standard Option A (SA): 10nm Formvar and 1nm CarbonStandard Option B (SB): 10nm Fo...

Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:

  • Molybdenum grids in place of Au, Cu, or Ni
  • As Silicone free
  • With ultra-thin thickness (thickness can be requested)
  • Extra thick thickness

NOTE: All of our film is laid on the shiny side of the grid.

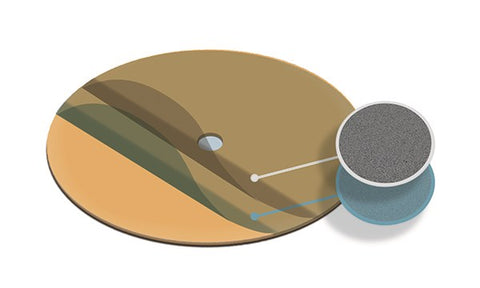

A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness range is as follows:

Standard Option A (SA): 10nm Formvar and 1nm Carbon
Standard Option B (SB): 10nm Formvar and 3-4nm Carbon
Standard Option C (SC): 10nm Formvar and 20-30nm Carbon
Ultra-Thin Option A (UA): 5-6nm Formvar and 1nm Carbon
Ultra-Thin Option B (UB): 5-6nm Formvar and 3-4nm Carbon
Ultra-Thin Option C (UC): 5-6nm Formvar and 20-30nm Carbon
Thick Option A (TA): 15-20nm Formvar and 1nm Carbon
Thick Option B (TB): 15-20nm Formvar and 3-4nm Carbon
Thick Option C (TC): 15-20nm Formvar and 20-30nm Carbon
Extra Thick Option A (EA): 25-50nm Formvar and 1nm Carbon
Extra Thick Option B (EB): 25-50nm Formvar and 3-4nm Carbon
Extra Thick Option C (EC): 25-50nm Formvar and 20-30nm Carbon

Code Title Mesh size Grid material Pack Size Availability Price Updated: 25-07-2024
EMSFCFGA1000-CU-SB Formvar on carbon film coated grids, single hole Copper 1000 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA1000-CU-SC Formvar on carbon film coated grids, single hole Copper 1000 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA1000-NI-SB Formvar on carbon film coated grids, single hole Nickel 1000 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA1000-NI-SC Formvar on carbon film coated grids, single hole Nickel 1000 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA100-CU-SB Formvar on carbon film coated grids, single hole Copper 100 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA100-CU-SC Formvar on carbon film coated grids, single hole Copper 100 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA100-NI-SB Formvar on carbon film coated grids, single hole Nickel 100 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA100-NI-SC Formvar on carbon film coated grids, single hole Nickel 100 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA1500-CU-SB Formvar on carbon film coated grids, single hole Copper 1500 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA1500-CU-SC Formvar on carbon film coated grids, single hole Copper 1500 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA1500-NI-SB Formvar on carbon film coated grids, single hole Nickel 1500 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA1500-NI-SC Formvar on carbon film coated grids, single hole Nickel 1500 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA150-CU-SB Formvar on carbon film coated grids, single hole Copper 150 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA150-CU-SC Formvar on carbon film coated grids, single hole Copper 150 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA150-NI-SB Formvar on carbon film coated grids, single hole Nickel 150 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA150-NI-SC Formvar on carbon film coated grids, single hole Nickel 150 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA200-CU-SB Formvar on carbon film coated grids, single hole Copper 200 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA200-CU-SC Formvar on carbon film coated grids, single hole Copper 200 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA200-NI-SB Formvar on carbon film coated grids, single hole Nickel 200 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA200-NI-SC Formvar on carbon film coated grids, single hole Nickel 200 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA300-CU-SB Formvar on carbon film coated grids, single hole Copper 300 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA300-CU-SC Formvar on carbon film coated grids, single hole Copper 300 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA300-NI-SB Formvar on carbon film coated grids, single hole Nickel 300 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA300-NI-SC Formvar on carbon film coated grids, single hole Nickel 300 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA400-CU-SB Formvar on carbon film coated grids, single hole Copper 400 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA400-CU-SC Formvar on carbon film coated grids, single hole Copper 400 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA400-NI-SB Formvar on carbon film coated grids, single hole Nickel 400 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA400-NI-SC Formvar on carbon film coated grids, single hole Nickel 400 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA600-CU-SB Formvar on carbon film coated grids, single hole Copper 600 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA600-CU-SC Formvar on carbon film coated grids, single hole Copper 600 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA600-NI-SB Formvar on carbon film coated grids, single hole Nickel 600 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA600-NI-SC Formvar on carbon film coated grids, single hole Nickel 600 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA75-CU-SB Formvar on carbon film coated grids, single hole Copper 75 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA75-CU-SC Formvar on carbon film coated grids, single hole Copper 75 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA75-NI-SB Formvar on carbon film coated grids, single hole Nickel 75 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA75-NI-SC Formvar on carbon film coated grids, single hole Nickel 75 mesh, C Pack/50 See above $235.00 AUD
EMSFCFGA800-CU-SB Formvar on carbon film coated grids, single hole Copper 800 mesh, B Pack/50 See above $222.00 AUD
EMSFCFGA800-CU-SC Formvar on carbon film coated grids, single hole Copper 800 mesh, C Pack/50 See above $222.00 AUD
EMSFCFGA800-NI-SB Formvar on carbon film coated grids, single hole Nickel 800 mesh, B Pack/50 See above $235.00 AUD
EMSFCFGA800-NI-SC Formvar on carbon film coated grids, single hole Nickel 800 mesh, C Pack/50 See above $235.00 AUD
GSHFC75CU-SA25 Formvar on carbon film coated grids, single hole Copper 75 mesh, A Pack/25 See above $130.00 AUD
GSHFC75CU-SA Formvar on carbon film coated grids, single hole Copper 75 mesh, A Pack/50 See above $222.00 AUD
GSHFC75NI-SA25 Formvar on carbon film coated grids, single hole Nickel 75 mesh, A Pack/25 See above $131.00 AUD
GSHFC75NI-SA Formvar on carbon film coated grids, single hole Nickel 75 mesh, A Pack/50 See above $235.00 AUD
GSHFC100CU-SA25 Formvar on carbon film coated grids, single hole Copper 100 mesh, A Pack/25 See above $130.00 AUD
GSHFC100CU-SA Formvar on carbon film coated grids, single hole Copper 100 mesh, A Pack/50 See above $222.00 AUD
GSHFC100NI-SA25 Formvar on carbon film coated grids, single hole Nickel 100 mesh, A Pack/25 See above $131.00 AUD
GSHFC100NI-SA Formvar on carbon film coated grids, single hole Nickel 100 mesh, A Pack/50 See above $235.00 AUD
GSHFC200CU-SA25 Formvar on carbon film coated grids, single hole Copper 200 mesh, A Pack/25 See above $130.00 AUD
GSHFC200CU-SA Formvar on carbon film coated grids, single hole Copper 200 mesh, A Pack/50 See above $222.00 AUD
GSHFC200NI-SA25 Formvar on carbon film coated grids, single hole Nickel 200 mesh, A Pack/25 See above $130.00 AUD
GSHFC200NI-SA Formvar on carbon film coated grids, single hole Nickel 200 mesh, A Pack/50 See above $234.00 AUD
GSHFC300CU-SA25 Formvar on carbon film coated grids, single hole Copper 300 mesh, A Pack/25 See above $130.00 AUD
GSHFC300CU-SA Formvar on carbon film coated grids, single hole Copper 300 mesh, A Pack/50 See above $222.00 AUD
GSHCF300NI-SA25 Formvar on carbon film coated grids, single hole Nickel 300 mesh, A Pack/25 See above $131.00 AUD
GSHFC300NI-SA Formvar on carbon film coated grids, single hole Nickel 300 mesh, A Pack/50 See above $235.00 AUD
GSHFC400CU-SA25 Formvar on carbon film coated grids, single hole Copper 400 mesh, A Pack/25 See above $130.00 AUD
GSHFC400CU-SA Formvar on carbon film coated grids, single hole Copper 400 mesh, A Pack/50 See above $222.00 AUD
GSHFC400NI-SA25 Formvar on carbon film coated grids, single hole Nickel 400 mesh, A Pack/25 See above $131.00 AUD
GSHFC400NI-SA Formvar on carbon film coated grids, single hole Nickel 400 mesh, A Pack/50 See above $235.00 AUD
GSHFC600CU-SA25 Formvar on carbon film coated grids, single hole Copper 600 mesh, A Pack/25 See above $130.00 AUD
GSHFC600CU-SA Formvar on carbon film coated grids, single hole Copper 600 mesh, A Pack/50 See above $222.00 AUD
GSHFC600NI-SA25 Formvar on carbon film coated grids, single hole Nickel 600 mesh, A Pack/25 See above $131.00 AUD
GSHFC600NI-SA Formvar on carbon film coated grids, single hole Nickel 600 mesh, A Pack/50 See above $235.00 AUD
GSHFC800CU-SA25 Formvar on carbon film coated grids, single hole Copper 800 mesh, A Pack/25 See above $130.00 AUD
GSHFC800CU-SA Formvar on carbon film coated grids, single hole Copper 800 mesh, A Pack/50 See above $222.00 AUD
GSHFC800NI-SA25 Formvar on carbon film coated grids, single hole Nickel 800 mesh, A Pack/25 See above $131.00 AUD
GSHFC800NI-SA Formvar on carbon film coated grids, single hole Nickel 800 mesh, A Pack/50 See above $235.00 AUD
GSHFC1000CU-SA25 Formvar on carbon film coated grids, single hole Copper 1000 mesh, A Pack/25 See above $130.00 AUD
GSHFC1000CU-SA Formvar on carbon film coated grids, single hole Copper 1000 mesh, A Pack/50 See above $222.00 AUD
GSHFC1000NI-SA25 Formvar on carbon film coated grids, single hole Nickel 1000 mesh, A Pack/25 See above $131.00 AUD
GSHFC1000NI-SA Formvar on carbon film coated grids, single hole Nickel 1000 mesh, A Pack/50 See above $235.00 AUD
GSHFC1500CU-SA25 Formvar on carbon film coated grids, single hole Copper 1500 mesh, A Pack/25 See above $130.00 AUD
GSHFC1500CU-SA Formvar on carbon film coated grids, single hole Copper 1500 mesh, A Pack/50 See above $222.00 AUD
GSHFC1500NI-SA25 Formvar on carbon film coated grids, single hole Nickel 1500 mesh, A Pack/25 See above $131.00 AUD
GSHFC1500NI-SA Formvar on carbon film coated grids, single hole Nickel 1500 mesh, A Pack/50 See above $235.00 AUD
