Formvar on carbon film coated grids, hex mesh, extra thick
Formvar + Carbon Film on Hexagonal Mesh GridsSupport Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:Molybdenum grids in place of Au, Cu, or NiAs Silicone freeWith ultra-thin thickness (thickness can be requested)Extra thick thicknessNOTE: All of our film is laid on the shiny side of the grid.Formvar/Carbon Film:A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness range is as follows:Standard Option...

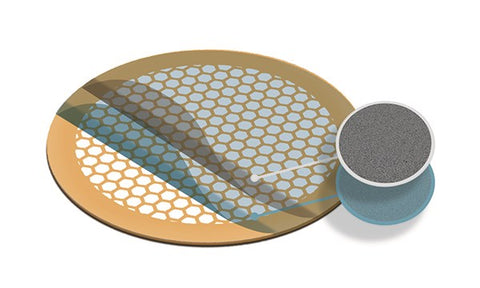

Formvar + Carbon Film on Hexagonal Mesh Grids
Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:
- Molybdenum grids in place of Au, Cu, or Ni
- As Silicone free
- With ultra-thin thickness (thickness can be requested)
- Extra thick thickness
NOTE: All of our film is laid on the shiny side of the grid.
Formvar/Carbon Film:
A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness range is as follows:
Standard Option A: 10nm Formvar and 1nm Carbon
Standard Option B (SB): 10nm Formvar and 3-4nm Carbon
Standard Option C (SC): 10nm Formvar and 20-30nm Carbon
Ultra-Thin Option A (UA): 5-6nm Formvar and 1nm Carbon
Ultra-Thin Option B (UB): 5-6nm Formvar and 3-4nm Carbon
Ultra-Thin Option C (UC): 5-6nm Formvar and 20-30nm Carbon
Thick Option A (TA): 15-20nm Formvar and 1nm Carbon
Thick Option B (TB): 15-20nm Formvar and 3-4nm Carbon
Thick Option C (TC): 15-20nm Formvar and 20-30nm Carbon
Extra Thick Option A (EA): 25-50nm Formvar and 1nm Carbon
Extra Thick Option B (EB): 25-50nm Formvar and 3-4nm Carbon
Extra Thick Option C (EC): 25-50nm Formvar and 20-30nm Carbon
Technical Tips
Please choose carefully. Returns of this item are subject to approval.
| Code | Title | Material | Mesh Size | Pack Size | Availability | Price | Updated: 29-04-2024 |
|---|---|---|---|---|---|---|---|
| GHFC100CU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 100 mesh, A | Pack/50 | See above | $203.00 AUD | |
| GHFC100CU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 100 mesh, B | Pack/50 | See above | $203.00 AUD | |
| GHFC100CU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 100 mesh, C | Pack/50 | See above | $203.00 AUD | |
| GHFC100NI-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 100 mesh, A | Pack/50 | See above | $213.00 AUD | |
| GHFC100NI-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 100 mesh, B | Pack/50 | See above | $213.00 AUD | |
| GHFC100NI-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 100 mesh, C | Pack/50 | See above | $213.00 AUD | |
| GHFC100AU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 100 mesh, A | Pack/50 | See above | $264.00 AUD | |
| GHFC100AU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 100 mesh, B | Pack/50 | See above | $264.00 AUD | |
| GHFC100AU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 100 mesh, C | Pack/50 | See above | $264.00 AUD | |
| GHFC200CU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 200 mesh, A | Pack/50 | See above | $158.00 AUD | |
| GHFC200CU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 200 mesh, B | Pack/50 | See above | $158.00 AUD | |
| GHFC200CU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 200 mesh, C | Pack/50 | See above | $158.00 AUD | |
| GHFC200NI-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 200 mesh, A | Pack/50 | See above | $213.00 AUD | |
| GHFC200NI-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 200 mesh, B | Pack/50 | See above | $213.00 AUD | |
| GHFC200NI-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 200 mesh, C | Pack/50 | See above | $213.00 AUD | |
| GHFC200AU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 200 mesh, A | Pack/50 | See above | $256.00 AUD | |
| GHFC200AU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 200 mesh, B | Pack/50 | See above | $256.00 AUD | |
| GHFC200AU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 200 mesh, C | Pack/50 | See above | $256.00 AUD | |
| GHFC300CU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 300 mesh, A | Pack/50 | See above | $165.00 AUD | |
| GHFC300CU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 300 mesh, B | Pack/50 | See above | $165.00 AUD | |
| GHFC300CU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 300 mesh, C | Pack/50 | See above | $165.00 AUD | |
| GHFC300NI-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 300 mesh, A | Pack/50 | See above | $178.00 AUD | |
| GHFC300AU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 300 mesh, A | Pack/50 | See above | $256.00 AUD | |
| GHFC300NI-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 300 mesh, B | Pack/50 | See above | $178.00 AUD | |
| GHFC300NI-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 300 mesh, C | Pack/50 | See above | $178.00 AUD | |
| GHFC300AU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 300 mesh, B | Pack/50 | See above | $256.00 AUD | |
| GHFC300AU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 300 mesh, C | Pack/50 | See above | $256.00 AUD | |
| GHFC400CU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 400 mesh, A | Pack/50 | See above | $169.00 AUD | |
| GHFC400CU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 400 mesh, B | Pack/50 | See above | $169.00 AUD | |
| GHFC400CU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Copper | 400 mesh, C | Pack/50 | See above | $169.00 AUD | |
| GHFC400NI-EA | Formvar on carbon film coated grids, hex mesh, extra thick | NIckel | 400 mesh, A | Pack/50 | See above | $178.00 AUD | |
| GHFC400NI-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 400 mesh, B | Pack/50 | See above | $178.00 AUD | |
| GHFC400NI-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Nickel | 400 mesh, C | Pack/50 | See above | $178.00 AUD | |
| GHFC400AU-EA | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 400 mesh, A | Pack/50 | See above | $256.00 AUD | |
| GHFC400AU-EB | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 400 mesh, B | Pack/50 | See above | $256.00 AUD | |
| GHFC400AU-EC | Formvar on carbon film coated grids, hex mesh, extra thick | Gold | 400 mesh, C | Pack/50 | See above | $256.00 AUD | |
