NE53 eyepiece reticles, vertical gauge lines + horizontal line

Crossed Gauge Lines - NE53, N54Use as crossed lines, but for the measuring of distances between the lines. Greater accuracy can be obtained by locating the specimen detail between the graticules gauge pair.PatternDescriptionDiameterProductNE53Two vertical lines 0.10mm apart with horizontal line. Image covers the entire field of view.Surface chrome image.16mmEMS67986-1619mmEMS67986-1921mmEMS67986-21NE54Two vertical lines 0.2mm apart.

Crossed Gauge Lines - NE53, N54

Use as crossed lines, but for the measuring of distances between the lines. Greater accuracy can be obtained by locating the specimen detail between the graticules gauge pair.

Pattern	Description	Diameter	Product

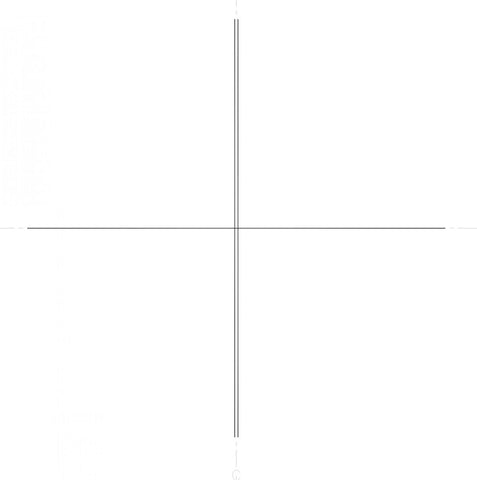

NE53	Two vertical lines 0.10mm apart with horizontal line. Image covers the entire field of view. Surface chrome image.	16mm	EMS67986-16
		19mm	EMS67986-19
		21mm	EMS67986-21
NE54	Two vertical lines 0.2mm apart.	16mm	EMS67975-16
		19mm	EMS67975-19
		21mm	EMS67975-21
		Custom	EMS67975-50
