NE20 eyepiece reticles, horizontal (EMS)
  • Collections

NE20 eyepiece reticles, horizontal (EMS)

Horizontal & Vertical Scales - NE1, NE2, NE5, NE20, NE28, NE31, NE41, NE120These scales are used for the measuring of lengths of specimen or distances between points on a variety of different shaped objects. NE1 scale shown: This eyepiece graticule has an overall length of 10.00mm with 100 subdivisions of 0.1 mm. When used with a x10 objective, each division will represent 10 microns on the specimen. By dividing the division of the chosen graticule by the magnification of the objective, one obtains an approximate value that each division will represent on the stage.

Horizontal & Vertical Scales - NE1, NE2, NE5, NE20, NE28, NE31, NE41, NE120

These scales are used for the measuring of lengths of specimen or distances between points on a variety of different shaped objects. NE1 scale shown: This eyepiece graticule has an overall length of 10.00mm with 100 subdivisions of 0.1 mm. When used with a x10 objective, each division will represent 10 microns on the specimen. By dividing the division of the chosen graticule by the magnification of the objective, one obtains an approximate value that each division will represent on the stage.

Pattern Description Diameter Code

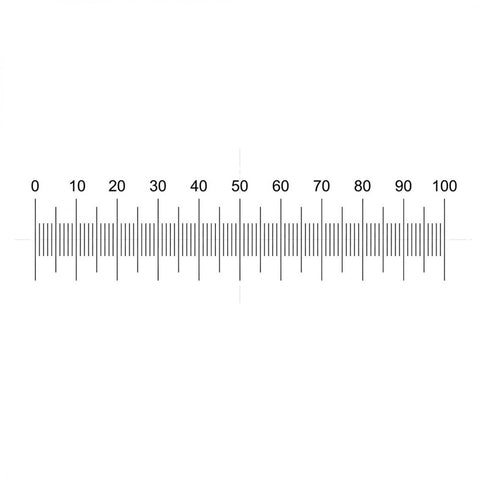

NE20 Horizontal scale 0.10 inch long with 100 subdivisions.
Surface scale image.		 16mm EMS67987-16
19mm EMS67987-19
21mm EMS67987-21

Technical Data

Updated: 11-10-2025
Code Size Pack Size Availability Price Updated: 11-10-2025
EMS67987-16 16mm Each 0 in stock (?) $206.00 AUD
EMS67987-19 19mm Each 0 in stock (?) $206.00 AUD
EMS67987-21 21mm Each 0 in stock (?) $206.00 AUD
