NE17 eyepiece reticles, crossed

Crossed Scales - NE17, NE18, NE70, NE72Used as a horizontal and a vertical scale, they are especially useful when interested in measurement in different axis.

Crossed Scales - NE17, NE18, NE70, NE72

Used as a horizontal and a vertical scale, they are especially useful when interested in measurement in different axis.

Pattern Description Diameter Code

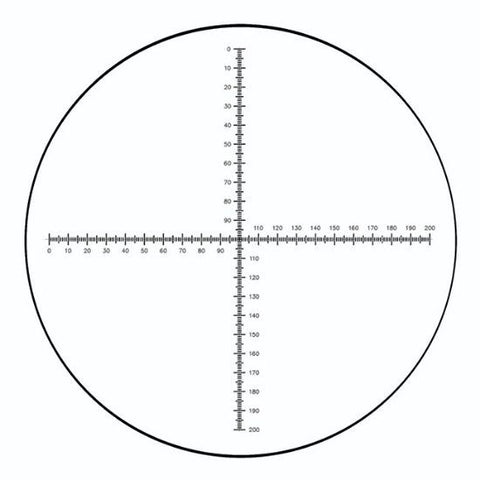

NE17 Crossed micrometer scales 10mm long with 0.1mm subdivisions.
Surface chrome image.		 16mm EMS67989-16
19mm EMS67989-19
20.4mm EMS67989-20.4
21mm EMS67989-21
23mm EMS67989-23
24.5mm EMS67989-24.5
25mm EMS67989-25
26mm EMS67989-26
27mm EMS67989-27
NE18 Crossed micrometer scales 5mm long with 0.05mm subdivisions.
Surface chrome image.		 16mm EMS67994-16
19mm EMS67994-19
21mm EMS67994-21
NE72 Crossed Micrometer scale 20mm long with 200 divisions of 0.10mm. 23mm EMS67978-23
24mm EMS67978-24
26mm EMS67978-26
27mm EMS67978-27
Custom EMS67978-50
NE70 Crossed Micrometer scale (Imperial). 0.8' long with 400 divisions of 0.002". 21mm EMS67978-21
23mm EMS67979-23
24mm EMS67979-24
26mm EMS67979-26
27mm EMS67979-27
Custom EMS67979-50

Technical Data

Updated: 18-05-2025
Code Diameter Pack Size Availability Price Updated: 18-05-2025
EMS67989-16 16mm Each 0 in stock (?) $222.00 AUD
EMS67989-19 19mm Each 0 in stock (?) $222.00 AUD
EMS67989-20.4 20.4mm Each 0 in stock (?) $222.00 AUD
EMS67989-21 21mm Each 0 in stock (?) $222.00 AUD
EMS67989-23 23mm Each 0 in stock (?) $222.00 AUD
EMS67989-24.5 24.5mm Each 0 in stock (?) $229.00 AUD
EMS67989-25 25mm Each 0 in stock (?) $229.00 AUD
EMS67989-26 26mm Each 0 in stock (?) $229.00 AUD
EMS67989-27 27mm Each 0 in stock (?) $229.00 AUD
