Accessories for critical point dryers
Accessories available for use with critical point dryers (CPD).
Specimen Holders:
Machined from solid steel, brass/nickel plated; incorporates a stainless steel mesh top and bottom to allow for fluid exchange.
- 12 Specimen holder: two sections x 6 specimen cavities each (cavity size 7.5mm D x 6mm H. Overall unit: 24mm D x 24mm H.

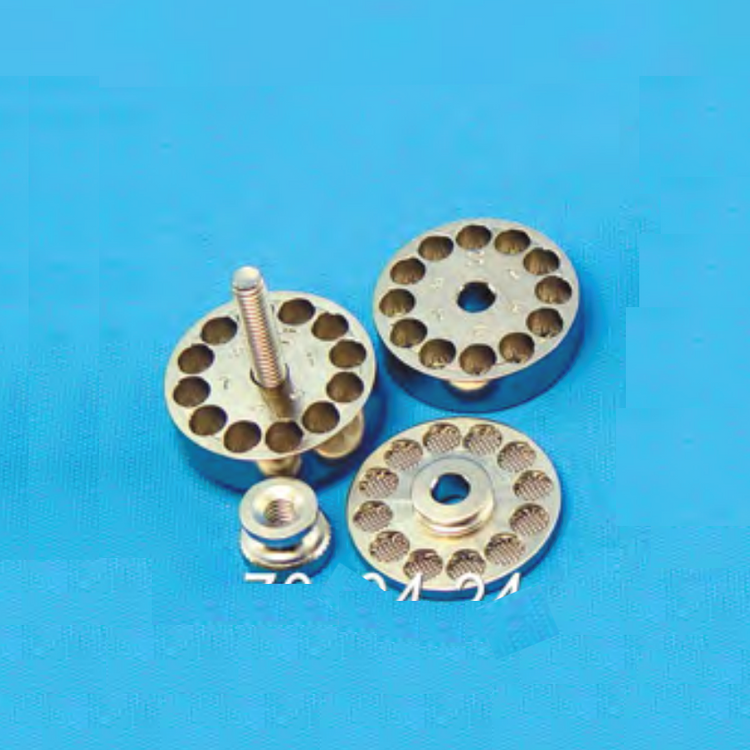

- 24 Specimen holder: two sections x 12 specimen cavities each (cavity size 4.5mm D x 6mm H. Overall unit: 24mm D x 28mm H.

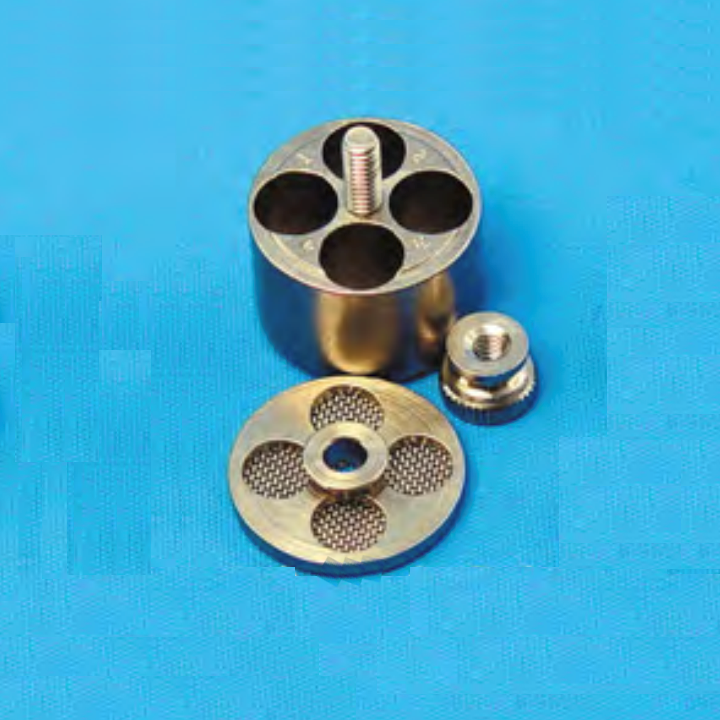

- 4 Specimen holder: one section x 4 specimens or multiples of large specimens (cavity size 4-9mm D x 16mm H. Overall unit: 24mm D x 28mm H.
Coverslip Holders:
Brass/Nickel plated. Coverslips can be stacked with spacers (up to 15 coverslips with a thickness up to 2mm) with samples placed on top of each coverslip. Fluids freely exchange between coverslips. Both spacers and weights come with the unit. The upper part of the holder is grooved to accept tweezers.

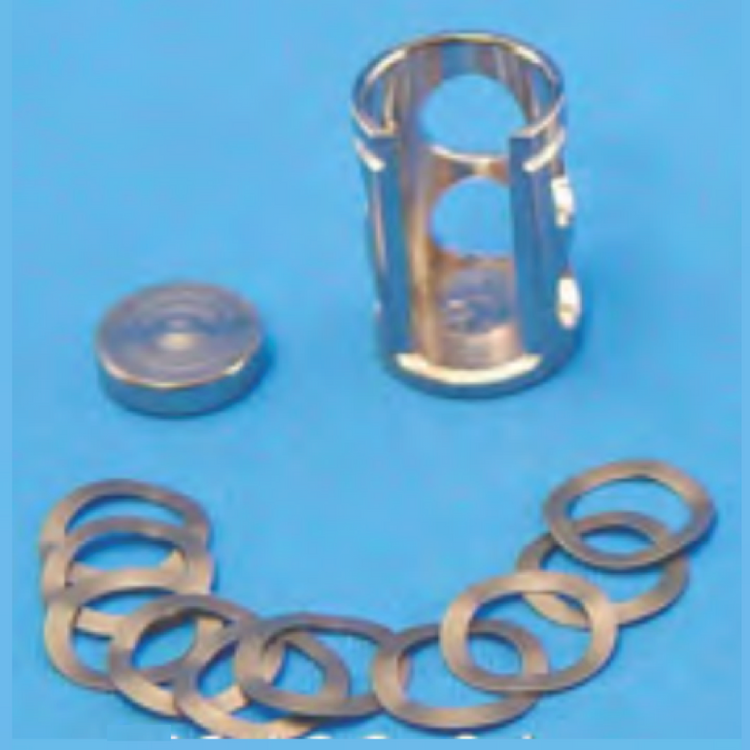

- Coverslip No. 1: Holds up to 10 coverslips, 9-13 mm diameter. Dimensions 16mm D x 24mm H.

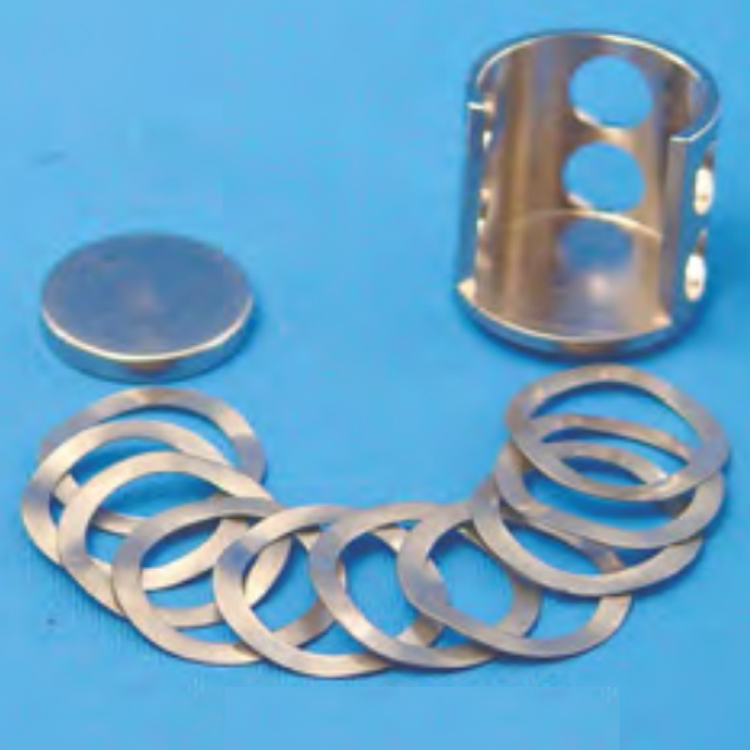

- Coverslip No. 2: Holds up to 10 coverslips, 16-22 mm diameter. Dimensions: 24mm D x 25mm H
Grid Holders:
Machined from solid steel with stainless steel mesh on the top and bottom. Featuring the most advanced design to protect grids from damage during processing. These holders are Brass-Nickel plated, very sturdy, and withstand all critical conditions.

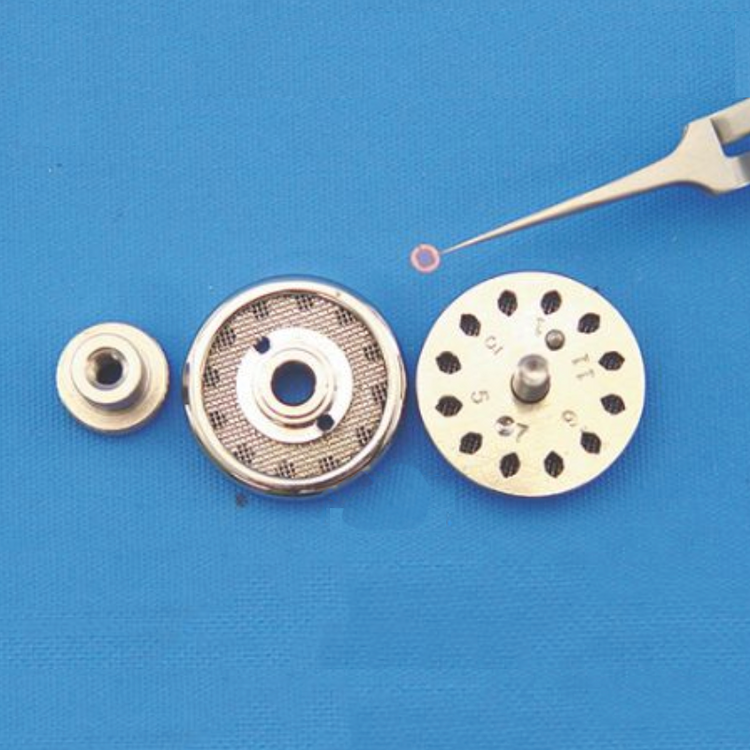

- Holds 12 grids in numbered slots. Dimensions: 24 mm (D) x 24 mm (H)
Code | Title | Type | Size | Pack Size | Availability | Price | Updated: 08-05-2024 |
---|---|---|---|---|---|---|---|
EMS70192-01 | Accessories for critical point dryers | Grid holder | 12 grids | Each | See above | $611.00 AUD | |
EMS70193-01 | Accessories for critical point dryers | Coverslip holder | No.1 | Each | See above | $605.00 AUD | |
EMS70193-02 | Accessories for critical point dryers | Coverslip holder | No.2 | Each | See above | $580.00 AUD | |
EMS70194-04 | Accessories for critical point dryers | Specimen holder | 4 specimens | Each | See above | $679.00 AUD | |
EMS70194-12 | Accessories for critical point dryers | Specimen holder | 12 specimens | Each | See above | $679.00 AUD | |
EMS70194-24 | Accessories for critical point dryers | Specimen holder | 24 specimens | Each | See above | $679.00 AUD | |
