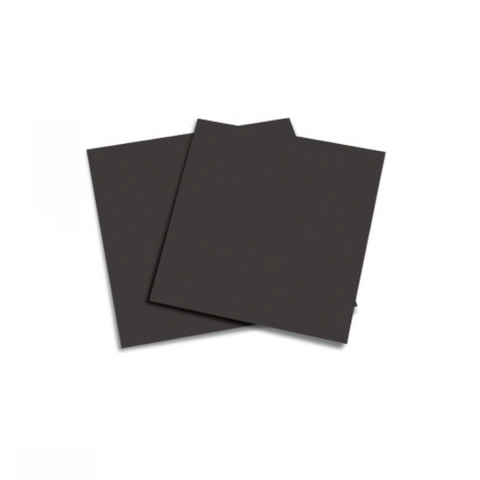

Pyrolytic graphite film

Smooth pyrolytic graphite stripper film is used in radiation sources, nuclear particle high energy density research, and medical diagnostic imaging instruments Pyrolytic graphite film offers major customer benefits relative to alternative materials such as amorphous carbon film or polycrystalline graphite films.Pyrolytic graphite film:Stable at high temperature and vacuumEasy to flex due to inherent higher flexural modulusErodes very slowlyHigher strength than alternative materialsLast 5 times longer than alternative materialsPyroid Pyrolytic Film Thickness/Real Size Conversion

Smooth pyrolytic graphite stripper film is used in radiation sources, nuclear particle high energy density research, and medical diagnostic imaging instruments Pyrolytic graphite film offers major customer benefits relative to alternative materials such as amorphous carbon film or polycrystalline graphite films.

Pyrolytic graphite film:

  • Stable at high temperature and vacuum
  • Easy to flex due to inherent higher flexural modulus
  • Erodes very slowly
  • Higher strength than alternative materials
  • Last 5 times longer than alternative materials

Pyroid Pyrolytic Film Thickness/Real Size Conversion

Code Film Size Thickness Wt/sq cm
EMS76040-05
 19 x 19mm 5µm 1.0mg
EMS76040-10
 19 x 19mm
 10µm
 2.0mg
EMS76041-05
 25.4 x 25.4mm 5µm
 1.0mg
EMS76041-10
 25.4 x 25.4mm
 10µm
 2.0mg
Updated: 02-04-2025
Code Thickness Size Pack Size Availability Price Updated: 02-04-2025
EMS76040-05 5um 19 x 19mm Each 0 in stock (?) P.O.R. Quote
EMS76040-10 10um 19 x 19mm Each 0 in stock (?) P.O.R. Quote
EMS76041-05 5um 25.4 x 25.4mm Each 0 in stock (?) P.O.R. Quote
EMS76041-10 10um 25.4 x 25.4mm Each 0 in stock (?) P.O.R. Quote
