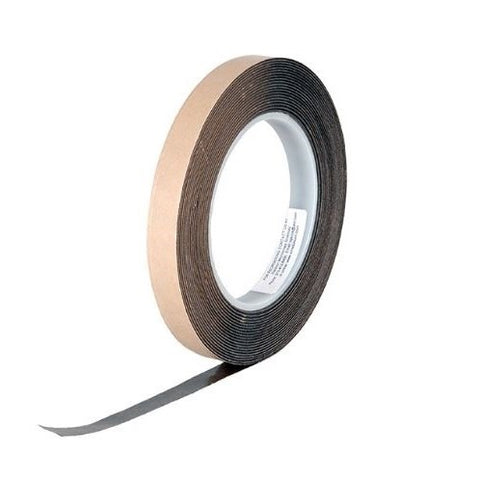

XYZ-Axis electrically conductive 3M double sided tape, 9713

3M XYZ-Axis Electrically Conductive Tape 9713 is an isotropically conductive pressure sensitive tape. 3M tape 9713 conducts electricity through the thickness (Z-axis) and in the plane of the adhesive (X, Y planes) and is ideal for EMI/RFI shield and EMI/RFI gasket attachment to metal surfaces. The tape consists of a high performance 3M adhesive loaded with conductive fibres. The result is a double-sided tape providing both good adhesion and good electrical performance. The conductive fibres in 3M tape 9713 also provide improved handling characteristics. The 9713 Tape is an excellent choice when needing to bond your samples for all SEM work

Specifications:

Electrical properties - contact restitcancme substrate tested

Based upon four wire (Kelvin probe) resistance measurements made with crossed pieces of Foil/Type 9712 or 9713/Rigid plate construction using a 25.4mm x 25.4mm piece of 3M tape Type 9712 or 9713. The rigid metal surface was prepared with a Scotch-Brite pad to roughen the surface and cleaned with isopropyl alcohol.

Adhesion properties

Adhesion (g/cm)

The tape is available in 5 sizes and it comes on a 76mm core.
