Tungsten loop filaments

Standard loop filaments for various machines.

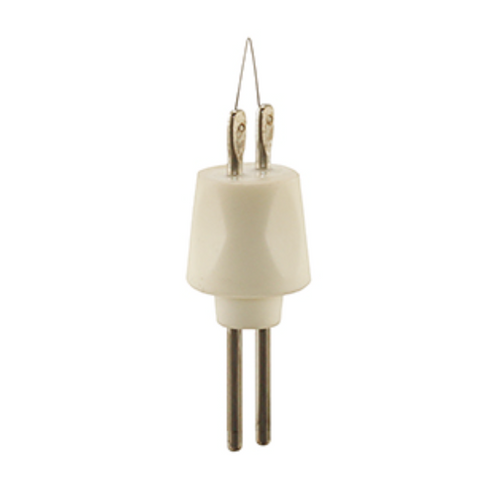

These Electron microscope Tungsten filaments have a rigid attachment of the filament wire to the post with no possibility of waving and a minimum tip radius for a coherent beam. Rebuildable for life of the microscope.

Rebuilding services are available and include reconditioning of the base; cleaning and/or replacement of necessary parts; Installment of new standard loop or special filament tip; Pre-centering; Vacuum normalising; and Microscopic inspection.

EMS81022: Hitachi S-type

EMS81036/8: ISI Instruments, ABT, Topcon

EMS81040: Zeiss Instruments, Tescan, Leo

EMS81020: Cambridge S Series, AEI, Novascan, Semco, and Nanolab

EMS81041: Hitachi K-type

EMS81044: Philips, FEI

EMS81046: Hitachi S-Type HOC

EMS81024: All Amray instruments (except Amray 1200 Series)

Please choose carefully. Returns of this item are subject to approval.

Code	Title	Type	Pack Size	Availability	Price
EMS81020	Tungsten loop filaments	Cambridge	Box/10	See above	$571.00 AUD

EMS81022	Tungsten loop filaments	Hitachi S-type	Box/10	See above	$1,285.00 AUD

EMS81024	Tungsten loop filaments	AMRAY	Box/10	See above	$1,420.00 AUD

EMS81036	Tungsten loop filaments	ISI, 2 prong	Box/10	See above	$986.00 AUD

EMS81038	Tungsten loop filaments	ISI, 3 prong	Box/10	See above	$860.00 AUD

EMS81038-R	Tungsten loop filaments	ISI, 3 prong (rebuilt)	Each	See above	$106.00 AUD

EMS81040	Tungsten loop filaments	Zeiss	Box/10	See above	$1,207.00 AUD

EMS81041	Tungsten loop filaments	JEOL K-Type	Box/10	See above	$1,196.00 AUD

EMS81044	Tungsten loop filaments	Pillips	Box/10	See above	$1,086.00 AUD

EMS81046	Tungsten loop filaments	Hitachi S-Type HOC	Each	See above	$1,711.00 AUD
