Gilder grids, thin square mesh (EMS)

3.05mm diameter, 20.3um thicknessMaterial: Copper(Cu), Nickel(Ni), Gold(Au)Thin Bar Grids have been developed using a new technology to produce ultra-fine grids with thinner cross bars than regular grids. The result is equally firm specimen support, but with 40% more open area for viewing maximum specimen surface area.Available:

3.05mm diameter, 20.3um thickness
Material: Copper(Cu), Nickel(Ni), Gold(Au)

Thin Bar Grids have been developed using a new technology to produce ultra-fine grids with thinner cross bars than regular grids. The result is equally firm specimen support, but with 40% more open area for viewing maximum specimen surface area.

Available:

    Technical Data (µm)
Type Product Pitch Hole Bar
200 mesh EMST200-Cu 125 113 12
  EMST200-Ni 125 113 12
  EMST200-Au 125 113 12
300 mesh EMST300-Cu 83 73 10
  EMST300-Ni 83 73 10
  EMST300-Au 83 73 10
400 mesh EMST400-Cu 62 54 8
  EMST400-Ni 62 54 8
  EMST400-Au 62 54 8
1000 mesh EMST1000-Cu 25 19 6
  EMST1000-Ni 25 19 6

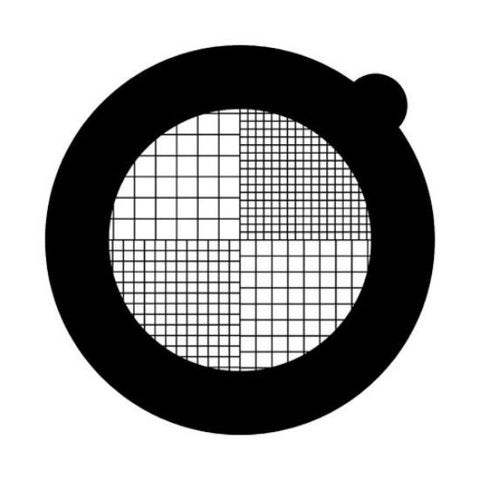

Variable Mesh EMSTVM-Cu Combined: 150, 200, 300, 400 mesh.
Same as above
EMSTVM-Ni

High value mesh

Type T601 (square) represent the effort to reduce the grid bar width (only 5 microns) enabling more of the specimen to be viewed. All new types, apart from one side being shiny, the other matte, have a large asymmetrical mark in the rim which gives the identification of which side the specimen is on.

Grids are 3.05mm overall diameter; 2.05mm mesh area diameter.

    Technical Data (µm)
Type Product Pitch Hole Bar
600 mesh square EMST601-Cu 42 37 5
EMST601-Ni 42 37 5
1500 mesh square EMST1500-Cu 16.5 11.5 5
EMST1500-Ni 16.5 11.5 5
2000 mesh square EMST2000-Cu 12.5 7.5 5
EMST2000-Ni 12.5 7.5 5
Updated: 28-11-2025
Code Material Mesh Size Pack Size Availability Price Updated: 28-11-2025
EMST200-AU Gold 200 mesh Pack/25 0 in stock (?) $50.00 AUD
EMST200-CU Copper 200 mesh Pack/100 0 in stock (?) $70.00 AUD
EMST200-NI Nickel 200 mesh Pack/100 0 in stock (?) $82.00 AUD
EMST300-AU Gold 300 mesh Pack/25 0 in stock (?) $50.00 AUD
EMST300-CU Copper 300 mesh Pack/100 0 in stock (?) $82.00 AUD
EMST300-NI Nickel 300 mesh Pack/100 0 in stock (?) $94.00 AUD
EMST400-AU Gold 400 mesh Pack/25 0 in stock (?) $64.00 AUD
EMST400-CU Copper 400 mesh Pack/100 0 in stock (?) $94.00 AUD
EMST400-NI Nickel 400 mesh Pack/100 0 in stock (?) $112.00 AUD
EMSTVM-CU Copper Variable Vial/100 0 in stock (?) $81.00 AUD
EMSTVM-NI Nickel Variable Vial/100 0 in stock (?) $94.00 AUD
EMST1000-CU Copper 1000 mesh Pack/25 0 in stock (?) $71.00 AUD
EMST1000-NI Nickel 1000 mesh Pack/25 0 in stock (?) $101.00 AUD
EMST601-CU Copper 601 mesh Pack/100 0 in stock (?) $104.00 AUD
EMST601-NI Nickel 601 mesh Pack/100 0 in stock (?) $132.00 AUD
EMST1500-CU Copper 1500 mesh Pack/15 0 in stock (?) $73.00 AUD
EMST1500-NI Nickel 1500 mesh Pack/15 0 in stock (?) $103.00 AUD
EMST2000-CU Copper 2000 mesh Pack/10 0 in stock (?) $70.00 AUD
EMST2000-NI Nickel 2000 mesh Pack/10 0 in stock (?) $103.00 AUD
