EMS stage micrometers, IAM-5M

Stage Mapping – Grid PatternThis ideal standard is for verifying or qualifying multiple image analysis parameters such as optical distortion, alignment between systems or optical paths, and cell areas for particle counting. The image area is 20mm x 50mm.Available:

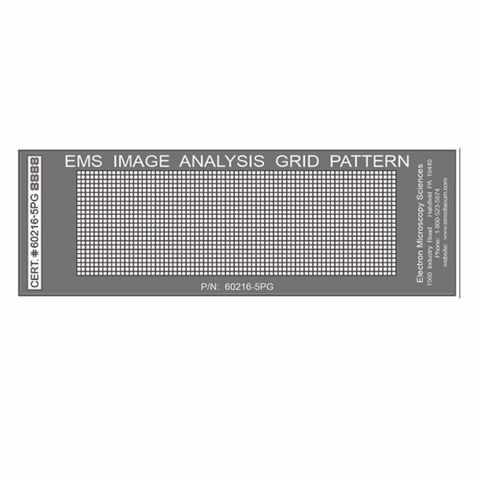

Stage Mapping – Grid Pattern

This ideal standard is for verifying or qualifying multiple image analysis parameters such as optical distortion, alignment between systems or optical paths, and cell areas for particle counting. The image area is 20mm x 50mm.

Available:

Model No. Clear Aperture Opaque Lines Pitch
IAM-5S 8.5 µm square 1.5 µm square 10 µm
IAM-5M 180 µm square 20 µm square 200 µm
IAM-5L 980 µm square 20 µm square 1,000 µm

Available: Chrome on glass (G) as standard, chrome on opal glass (O) or chrome on quartz (Q) by request only as a custom.

P: positive image (mostly clear or white); N: negative image (mostly opaque or black).

Technical Data

Store at room temperature

Specifications:

Overall Size 25 mm x 75mm
Image Forming Material Negative image/Chrome on glass (NG)

Manufactured in the USA

Updated: 11-10-2025
Code Type Pack Size Availability Price Updated: 11-10-2025
EMS60216-5MNG IAM-5M Each 0 in stock (?) P.O.R. Quote
EMS60216-5MNGC IAM-5M, calibrated Each 0 in stock (?) P.O.R. Quote
