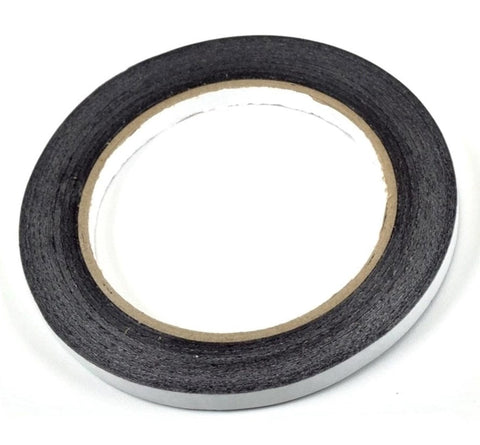

Double-sided carbon tape (EMS)
With carbon double-sided tape, small particle sizes, such as 15-20µm, can be mounted on the adhesive and produce good background structure. Our Double sided Carbon tape is also available in five widths to accommodate varying specimen mount surface sizes and applications.
With carbon double-sided tape, small particle sizes, such as 15-20µm, can be mounted on the adhesive and produce good background structure. Our Double sided Carbon tape is also available in five widths to accommodate varying specimen mount surface sizes and applications.
| Technical Data | Double sided Carbon Tape |
| PAD | Isolate unwoved cloth |
| Overall Thickness | 0.16mm |
| PAD | 0.07mm |
| Adhesive | 0.045 mmx2 |
| Conductive resistivity | 50 ohm/sq.Inch |
| Adhesive Power/25 mm width | 1,000 gf |
| Capacity after 60 min | 0.2mm |
See: IA020 as a direct product replacement
This product is discontinued, please do not buy more than is shown as available.
Please choose carefully. Returns of this item are subject to approval.
Updated: 04-09-2026
| Code | Width | Pack Size | Availability | Price | Updated: 04-09-2026 |
|---|---|---|---|---|---|
| EMS77816 | 8mm | Roll/20m | No ETA | $81.00 AUD | |
| EMS77817 | 8mm | 5 x Roll/20m | No ETA | $321.00 AUD | |
| EMS77817-05 | 5mm | Roll/20m | 1 in stock | $76.00 AUD | |
| EMS77817-12 | 12mm | Roll/20m | No ETA | $121.00 AUD | |
| EMS77817-20 | 20mm | Roll/20m | No ETA | $166.00 AUD | |
| EMS77817-50 | 50mm | Roll/20m | No ETA | $274.00 AUD |
* Availability Explanation
Items listed as "0 in stock" are no longer available for purchase as they have been discontinued.
In Stock – In stock on the shelf, ready to ship. These are only available until we run our of our current stock.
