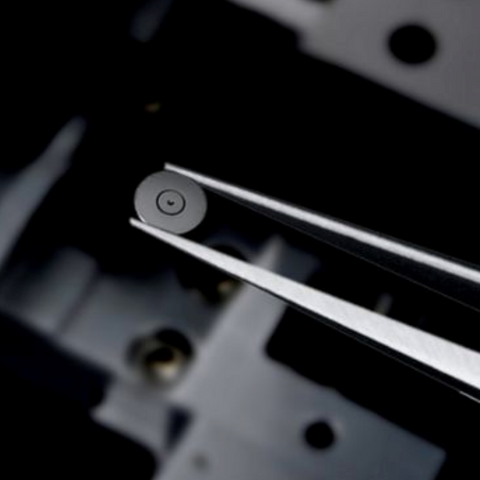

Disc apertures, Molybdenum
Apertures are easily cleaned by either an aperture flamer or over a bunsen burner in the open air. A wide variety of Platinum Drilled Apertures are available with different configurations suiting all of your needs.
Apertures size tolerances vary as follow:
- Nominal hole diameter: +/- 1 micron
- Disc diameter: +/- 10 microns
- Disc thickness: +/- 10 microns
Size and Applications:
- 2mm dia. x 0.24mm thick: Phillips, Cameca
- 2mm dia. x 0.53mm thick: Cambridge, Siemens, JEOL, Cameca
- 3mm dia. x 0.12mm thick: Zeiss, Nanolab, Novascan
- 3mm dia. x 0.24mm thick: Philips, ARM, AEI, Cambridge
- 4mm dia. x 0.165mm thick: ISI
- 6mm dia. x .24mm thick: JEOL
- 6.35mm dia. x 0.06mm thick: ETEC
- 6.35mm dia. x 0.14mm thick: ETEC Spray Aperture
- 12.7mm dia. x 0.25mm thick: Cambridge, Camscan Spray Aperture
Please choose carefully. Returns of this item are subject to approval.
| Code | Title | Hole size | Size | Pack Size | Availability | Price | Updated: 08-05-2024 |
|---|---|---|---|---|---|---|---|
| EMS42005-MO | Disc apertures, Molybdenum | 5um | 2mm dia. x 0.53mm | Each | See above | $491.00 AUD | |
| EMS44005-MO | Disc apertures, Molybdenum | 5um | 3mm dia. x 0.24mm | Each | See above | $578.00 AUD | |
| EMS40010-MO | Disc apertures, Molybdenum | 10um | 2mm dia. x 0.24mm | Each | See above | $491.00 AUD | |
| EMS42010-MO | Disc apertures, Molybdenum | 10um | 2mm dia. x 0.53mm | Each | See above | $491.00 AUD | |
| EMS43010-MO | Disc apertures, Molybdenum | 10um | 3mm dia. x 0.12mm | Each | See above | $491.00 AUD | |
| EMS44010-MO | Disc apertures, Molybdenum | 10um | 3mm dia. x 0.24mm | Each | See above | $491.00 AUD | |
| EMS45010-MO | Disc apertures, Molybdenum | 10um | 4mm dia. x 0.165mm | Each | See above | $491.00 AUD | |
| EMS46010-MO | Disc apertures, Molybdenum | 10um | 6mm dia. x 0.24mm | Each | See above | $491.00 AUD | |
| EMS47030-MO | Disc apertures, Molybdenum | 10um | 6.35mm dia. x 0.06mm | Each | See above | $491.00 AUD | |
| EMS42015-MO | Disc apertures, Molybdenum | 15um | 2mm dia. x 0.53mm | Each | See above | $204.00 AUD | |
| EMS44015-MO | Disc apertures, Molybdenum | 15um | 3mm dia. x 0.24mm | Each | See above | $209.00 AUD | |
| EMS40020-MO | Disc apertures, Molybdenum | 20um | 2mm dia. x 0.24mm | Each | See above | $202.00 AUD | |
| EMS42020-MO | Disc apertures, Molybdenum | 20um | 2mm dia. x 0.53mm | Each | See above | $204.00 AUD | |
| EMS43020-MO | Disc apertures, Molybdenum | 20um | 3mm dia. x 0.12mm | Each | See above | $220.00 AUD | |
| EMS44020-MO | Disc apertures, Molybdenum | 20um | 3mm dia. x 0.24mm | Each | See above | $209.00 AUD | |
| EMS45020-MO | Disc apertures, Molybdenum | 20um | 4mm dia. x 0.165mm | Each | See above | $266.00 AUD | |
| EMS46020-MO | Disc apertures, Molybdenum | 20um | 6mm dia. x 0.24mm | Each | See above | $341.00 AUD | |
| EMS44025-MO | Disc apertures, Molybdenum | 25um | 3mm dia. x 0.24mm | Each | See above | $202.00 AUD | |
| EMS40030-MO | Disc apertures, Molybdenum | 30um | 2mm dia. x 0.24mm | Each | See above | $193.00 AUD | |
| EMS42030-MO | Disc apertures, Molybdenum | 30um | 2mm dia. x 0.53mm | Each | See above | $195.00 AUD | |
| EMS43030-MO | Disc apertures, Molybdenum | 30um | 3mm dia. x 0.12mm | Each | See above | $209.00 AUD | |
| EMS44030-MO | Disc apertures, Molybdenum | 30um | 3mm dia. x 0.24mm | Each | See above | $202.00 AUD | |
| EMS45030-MO | Disc apertures, Molybdenum | 30um | 4mm dia. x 0.165mm | Each | See above | $214.00 AUD | |
| EMS46030-MO | Disc apertures, Molybdenum | 30um | 6mm dia. x 0.24mm | Each | See above | $312.00 AUD | |
| EMS42040-MO | Disc apertures, Molybdenum | 40um | 2mm dia. x 0.53mm | Each | See above | $195.00 AUD | |
| EMS44040-MO | Disc apertures, Molybdenum | 40um | 3mm dia. x 0.24mm | Each | See above | $177.00 AUD | |
| EMS40050-MO | Disc apertures, Molybdenum | 50um | 2mm dia. x 0.24mm | Each | See above | $177.00 AUD | |
| EMS42050-MO | Disc apertures, Molybdenum | 50um | 2mm dia. x 0.53mm | Each | See above | $177.00 AUD | |
| EMS43050-MO | Disc apertures, Molybdenum | 50um | 3mm dia. x 0.12mm | Each | See above | $202.00 AUD | |
| EMS44050-MO | Disc apertures, Molybdenum | 50um | 3mm dia. x 0.24mm | Each | See above | $184.00 AUD | |
| EMS45050-MO | Disc apertures, Molybdenum | 50um | 4mm dia. x 0.165mm | Each | See above | $209.00 AUD | |
| EMS46050-MO | Disc apertures, Molybdenum | 50um | 6mm dia. x 0.24mm | Each | See above | $312.00 AUD | |
| EMS47050-MO | Disc apertures, Molybdenum | 50um | 6.35mm dia. x 0.06mm | Each | See above | $312.00 AUD | |
| EMS43060-MO | Disc apertures, Molybdenum | 60um | 3mm dia. x 0.12mm | Each | See above | $202.00 AUD | |
| EMS44060-MO | Disc apertures, Molybdenum | 60um | 3mm dia. x 0.24mm | Each | See above | $179.00 AUD | |
| EMS42070-MO | Disc apertures, Molybdenum | 70um | 2mm dia. x 0.53mm | Each | See above | $177.00 AUD | |
| EMS43070-MO | Disc apertures, Molybdenum | 70um | 3mm dia. x 0.12mm | Each | See above | $202.00 AUD | |
| EMS44070-MO | Disc apertures, Molybdenum | 70um | 3mm dia. x 0.24mm | Each | See above | $179.00 AUD | |
| EMS45070-MO | Disc apertures, Molybdenum | 70um | 4mm dia. x 0.165mm | Each | See above | $209.00 AUD | |
| EMS40100-MO | Disc apertures, Molybdenum | 100um | 2mm dia. x 0.24mm | Each | See above | $173.00 AUD | |
| EMS42100-MO | Disc apertures, Molybdenum | 100um | 2mm dia. x 0.53mm | Each | See above | $173.00 AUD | |
| EMS43100-MO | Disc apertures, Molybdenum | 100um | 3mm dia. x 0.12mm | Each | See above | $202.00 AUD | |
| EMS44100-MO | Disc apertures, Molybdenum | 100um | 3mm dia. x 0.24mm | Each | See above | $175.00 AUD | |
| EMS45100-MO | Disc apertures, Molybdenum | 100um | 4mm dia. x 0.165mm | Each | See above | $182.00 AUD | |
| EMS46100-MO | Disc apertures, Molybdenum | 100um | 6mm dia. x 0.24mm | Each | See above | $312.00 AUD | |
| EMS47100-MO | Disc apertures, Molybdenum | 100um | 6.35mm dia. x 0.06mm | Each | See above | $258.00 AUD | |
| EMS40150-MO | Disc apertures, Molybdenum | 150um | 2mm dia. x 0.24mm | Each | See above | $171.00 AUD | |
| EMS43150-MO | Disc apertures, Molybdenum | 150um | 3mm dia. x 0.12mm | Each | See above | $198.00 AUD | |
| EMS44150-MO | Disc apertures, Molybdenum | 150um | 3mm dia. x 0.24mm | Each | See above | $175.00 AUD | |
| EMS47150-MO | Disc apertures, Molybdenum | 150um | 6.35mm dia. x 0.06mm | Each | See above | $258.00 AUD | |
| EMS43200-MO | Disc apertures, Molybdenum | 200um | 3mm dia. x 0.12mm | Each | See above | $198.00 AUD | |
| EMS44200-MO | Disc apertures, Molybdenum | 200um | 3mm dia. x 0.24mm | Each | See above | $175.00 AUD | |
| EMS47200-MO | Disc apertures, Molybdenum | 200um | 6.35mm dia. x 0.06mm | Each | See above | $258.00 AUD | |
| EMS43300-MO | Disc apertures, Molybdenum | 300um | 3mm dia. x 0.12mm | Each | See above | $198.00 AUD | |
| EMS44300-MO | Disc apertures, Molybdenum | 300um | 3mm dia. x 0.24mm | Each | See above | $175.00 AUD | |
| EMS44400-MO | Disc apertures, Molybdenum | 400um | 3mm dia. x 0.24mm | Each | See above | $175.00 AUD | |
