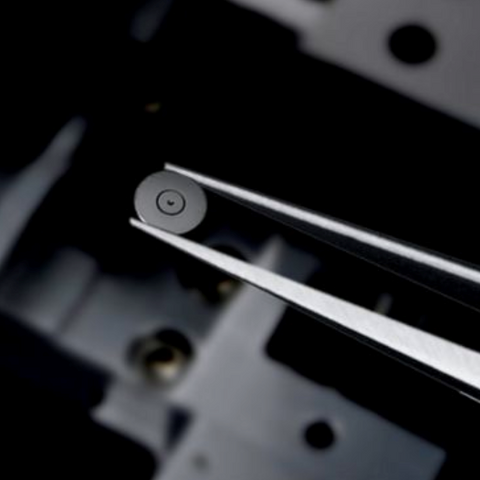

Disc apertures, Gold

Advanced techniques of thin metal film application permits the apertures to retain a clean hole edge during prolonged beam exposure. Ultra-thin, half-micron design discourages contaminant accumulation and stabilises astigmatic conditions to provide longer life. Conventional mechanical cleaning involving costly down-time is no longer necessary. Because the foil is ultra thin, care must be taken when handling the gold foil apertures.

Gold foil aperture tolerances vary as follow:

  • Nominal hole size from 1 to 60 micron: +/-1micron
  • Nominal hole size 70 micron and up: +/-10%

Size and Applications:

  • 2mm dia. x 0.24mm thick: Phillips, Cameca
  • 2mm dia. x 0.53mm thick: Cambridge, Siemens, JEOL, Cameca
  • 3mm dia. x 0.12mm thick: Zeiss, Nanolab, Novascan
  • 3mm dia. x 0.24mm thick: Philips, ARM, AEI, Cambridge
  • 4mm dia. x 0.165mm thick: ISI
  • 6mm dia. x .24mm thick: JEOL
  • 6.35mm dia. x 0.06mm thick: ETEC
  • 6.35mm dia. x 0.14mm thick: ETEC Spray Aperture
  • 12.7mm dia. x 0.25mm thick: Cambridge, Camscan Spray Aperture
Code Title Hole size Size Pack Size Availability Price Updated: 08-05-2024
EMS43010-AU Disc apertures, Gold 10um 3mm dia. x 0.12mm Each See above $497.00 AUD
EMS43020-AU Disc apertures, Gold 20um 3mm dia. x 0.12mm Each See above $315.00 AUD
EMS43030-AU Disc apertures, Gold 30um 3mm dia. x 0.12mm Each See above $334.00 AUD
EMS43050-AU Disc apertures, Gold 50um 3mm dia. x 0.12mm Each See above $246.00 AUD
EMS43060-AU Disc apertures, Gold 60um 3mm dia. x 0.12mm Each See above $246.00 AUD
EMS43070-AU Disc apertures, Gold 70um 3mm dia. x 0.12mm Each See above $230.00 AUD
EMS43100-AU Disc apertures, Gold 100um 3mm dia. x 0.12mm Each See above $230.00 AUD
EMS43150-AU Disc apertures, Gold 150um 3mm dia. x 0.12mm Each See above $230.00 AUD
EMS43200-AU Disc apertures, Gold 200um 3mm dia. x 0.12mm Each See above $230.00 AUD
EMS43300-AU Disc apertures, Gold 300um 3mm dia. x 0.12mm Each See above $230.00 AUD
MAPT2X53-005 Disc apertures, Gold 5um 2mm dia. x 0.53mm Each See above $538.00 AUD
EMS44005-AU Disc apertures, Gold 5um 3mm dia. x 0.24mm Each See above $628.00 AUD
MAPT2X53-010 Disc apertures, Gold 10um 2mm dia. x 0.53mm Each See above $538.00 AUD
EMS44010-AU Disc apertures, Gold 10um 3mm dia. x 0.24mm Each See above $601.00 AUD
MAPT2X53-015 Disc apertures, Gold 15um 2mm dia. x 0.53mm Each See above $507.00 AUD
EMS44015-AU Disc apertures, Gold 15um 3mm dia. x 0.24mm Each See above $667.00 AUD
MAPT2X53-020 Disc apertures, Gold 20um 2mm dia. x 0.53mm Each 2 in stock $269.00 AUD $538.00 AUD
MAPT3X24-020 Disc apertures, Gold 20um 3mm dia. x 0.24mm Each 2 in stock $281.00 AUD $561.00 AUD
MAPT2X53-030 Disc apertures, Gold 30um 2mm dia. x 0.53mm Each 2 in stock $269.00 AUD $538.00 AUD
MAPT3X24-025 Disc apertures, Gold 25um 3mm dia. x 0.24mm Each 2 in stock $189.00 AUD $244.00 AUD
MAPT3X24-030 Disc apertures, Gold 30um 3mm dia. x 0.24mm Each 1 in stock $131.00 AUD $261.00 AUD
MAPT2X53-040 Disc apertures, Gold 40um 2mm dia. x 0.53mm Each See above $436.00 AUD
MAPT2X53-050 Disc apertures, Gold 50um 2mm dia. x 0.53mm Each 2 in stock $269.00 AUD $538.00 AUD
EMS44040-AU Disc apertures, Gold 40um 3mm dia. x 0.24mm Each See above $225.00 AUD
MAPT3X24-050 Disc apertures, Gold 50um 3mm dia. x 0.24mm Each 2 in stock $139.00 AUD $278.00 AUD
MAPT2X53-070 Disc apertures, Gold 70um 2mm dia. x 0.53mm Each See above $538.00 AUD
MAPT2X53-100 Disc apertures, Gold 100um 2mm dia. x 0.53mm Each See above $538.00 AUD
EMS44060-AU Disc apertures, Gold 60um 3mm dia. x 0.24mm Each See above $225.00 AUD
EMS44070-AU Disc apertures, Gold 70um 3mm dia. x 0.24mm Each See above $225.00 AUD
EMS44100-AU Disc apertures, Gold 100um 3mm dia. x 0.24mm Each See above $225.00 AUD
EMS44150-AU Disc apertures, Gold 150um 3mm dia. x 0.24mm Each See above $225.00 AUD
EMS44200-AU Disc apertures, Gold 200um 3mm dia. x 0.24mm Each See above $225.00 AUD
EMS44300-AU Disc apertures, Gold 300um 3mm dia. x 0.24mm Each See above $225.00 AUD
EMS44400-AU Disc apertures, Gold 400um 3mm dia. x 0.24mm Each See above $225.00 AUD
