Aperture flamer

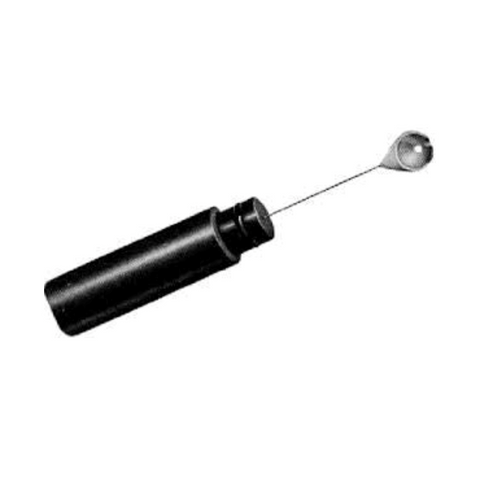

For holding aperture discs or strips while flaming. Small discs can be flamed in the 3/16in diameter cup made from 6 mil platinum foil with a 1/32in diameter hole in the bottom to induce a good flow of air. The cup is attached by a 30 mil platinum wire to a heat resistant handle.

The aperture can be hung from the hook for flaming. For holding 1/4in to 1/2in diameter aperture discs while flaming. The flat pan is made from 6 mil platinum foil with a 1/32in diameter hole in the bottom to induce adequate air flow. A 30 mil platinum wire attaches the pan to a heat resistant handle.

Manufacturer: Electron Microscopy Sciences

Technical data sheet
