NIGHTSEA fluorescence viewing system bases

The NIGHTSEA SFA lamp base is available in three versions: Standard, DIM, and PULSE. Only one control option is available per base. The DIM and PULSE options can be purchased as a part of a new system, or are available as retrofit to an existing base, or in a stand-alone lamp base purchased a la carte.

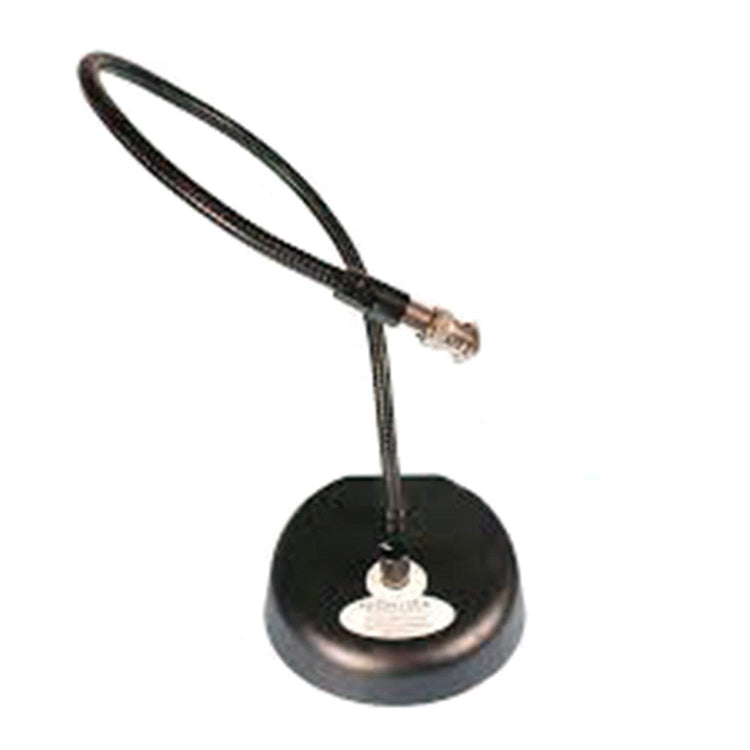

NIGHTSEA Standard Base - Provides a steady light when turned on.

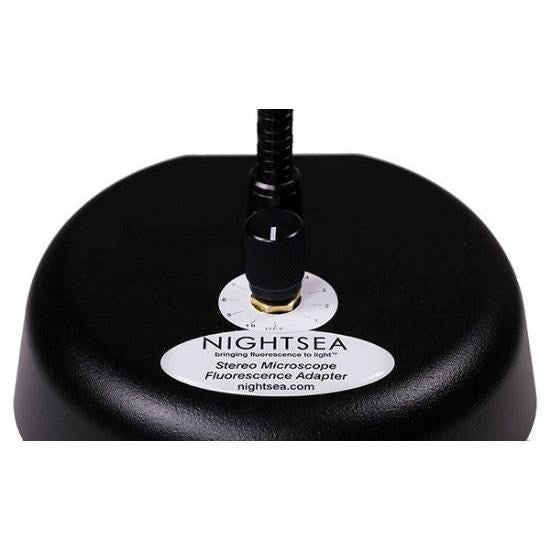

NIGHTSEA DIM Base - Adds a combined switch and dimmer control.

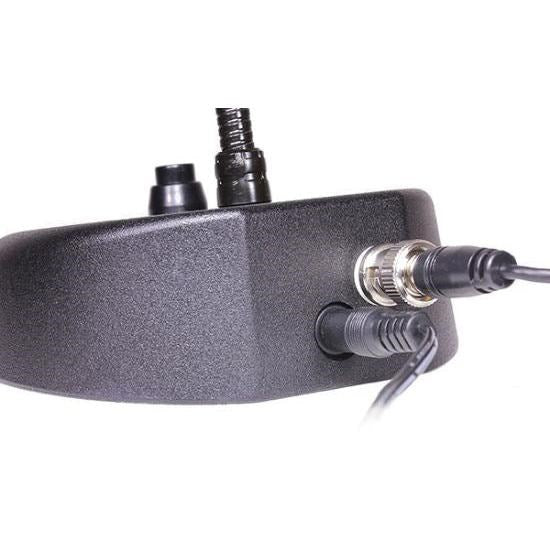

NIGHTSEA PULSE Base - Adds a BNC connector on the rear of the base that accepts a user-supplied voltage input to turn the light on and off.

Standard lamp bases have a simple OFF/ON operation. DIM lamp bases feature an OFF/ON/DIM switch to change the intensity of the light. PULSE lamp bases incorporate a BNC connector that accepts a voltage signal to control the excitation source ON/OFF.

Tech Tip: Will the Stereo Microscope Fluorescence Adapter Fit my Microscope?

Base Specifications:

• Voltage input: 2.8-6.0 VDC for ON, <0.6VDC OFF
• Maximum operation frequency: 10kHz
• BNC cable not included
