Mic-Fi / Visio-tek Scope microscopes
Mic-Fi / Visio-tek Scope is a complete solution with a digital C-Mount Wi-Fi Camera that allows you to wirelessly digitalise any traditional optical device in seconds. Compatible with all optical microscopes, the Mic-Fi / Visio-tek Scope digitalises images and takes measurements and photos from your standard optical device using your tablet, smartphone or PC, with dedicated App and Software. The images can be displayed on different devices simultaneously. It is a very useful accessory for optical microscopes.
Available:
- Mic-Fi / Visio-tek Scope
- Mic-Fi / Visio-tek Scope 5
- Mic-Fi / Visio-tek Eye
- Mic-Fi / Visio-tek C-Mount Rings

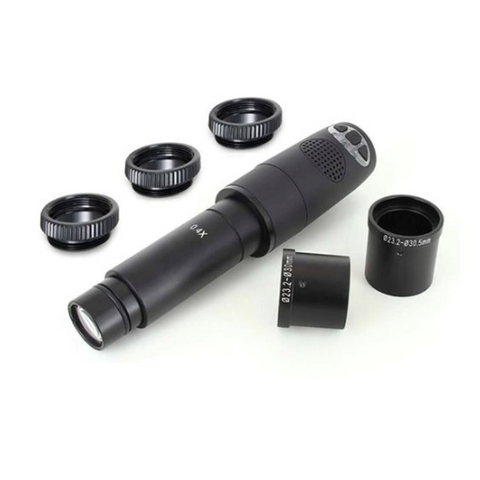

Scope and Scope 5Â include:
- EMS92111 Wi-Fi Eye Camera
- EMS92113 Lens & Adapters

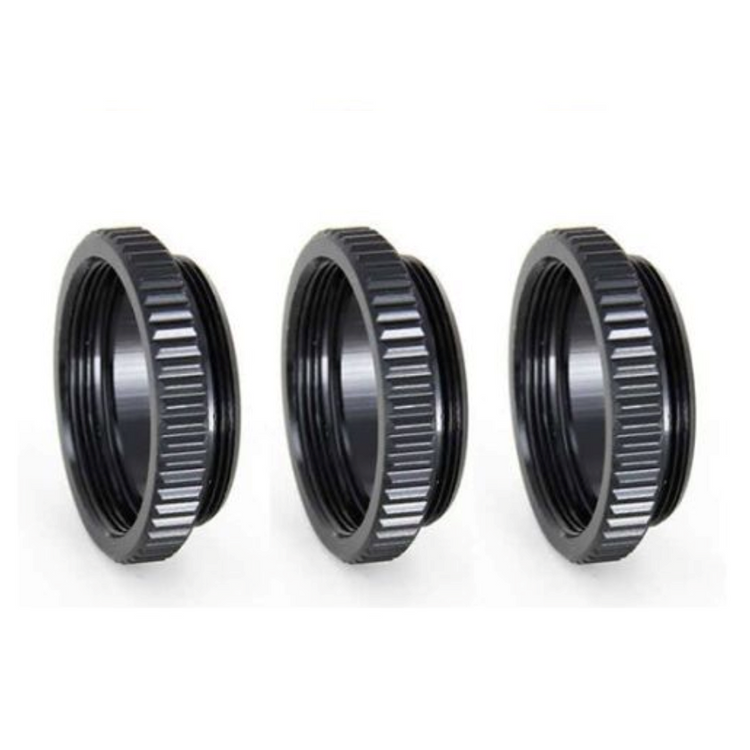

- EMS92114 Spacer Rings
Specifications:
| Model | Scope | Scope 5 |
| Photo & Video Resolution | 1.30MP – 1280x1024, 640x480, 320x240 | 5MP – 2592x1944, 2048x1536, 1600x1200, 1280x960, 1280x1024, 640x480, 320x240 |
| Frame Rate | up to 30 fps | |
| Camera Sensor | CMOS ¼" | |
| Lens | High Definition Microscopy Lens | |
| Wi-Fi Transmission Distance | up to 5m | |
| Frequency Range | 2.400 GHz ~ 2.4835 GHz | |
| PC interface | USB 2.0 | |
| Mini USB Cable | 1.2m | |
| Dimensions | 36mm (Diameter) x 75mm (Length) | |
| Power consumption | Max 2.5W | |
| Li-ion Battery | Continuous Working Time: Approx 2 Hours Full Charging Time: Approx 2 Hours |
|

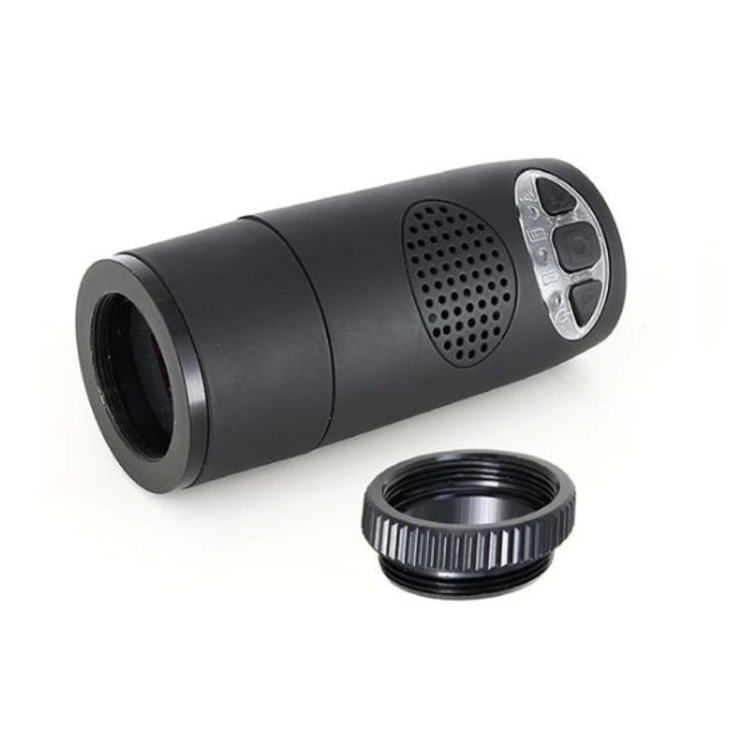

Eye:Â Digital Wi-Fi Camera (C-Mount) for Optical Instruments & Devices. Includes Spacer Ring.
C-Mount Rings:Â Lens 0.4X/23.2mm plus 30 and 30.5 adapters.
Can be used in phototubes, trinocular tubes, or eye tubes with 23.2mm. It will allow you to connect your optical device, such as a microscope, with the Mic-Fi / Visio-tek Eye Cameras (EMS92111 and EMS92112).
- Lens: 0.4x reductions lens
- Structure: Optical glass, aluminium, stainless steel
- Diameter: 23.2mm
